Data Processing II

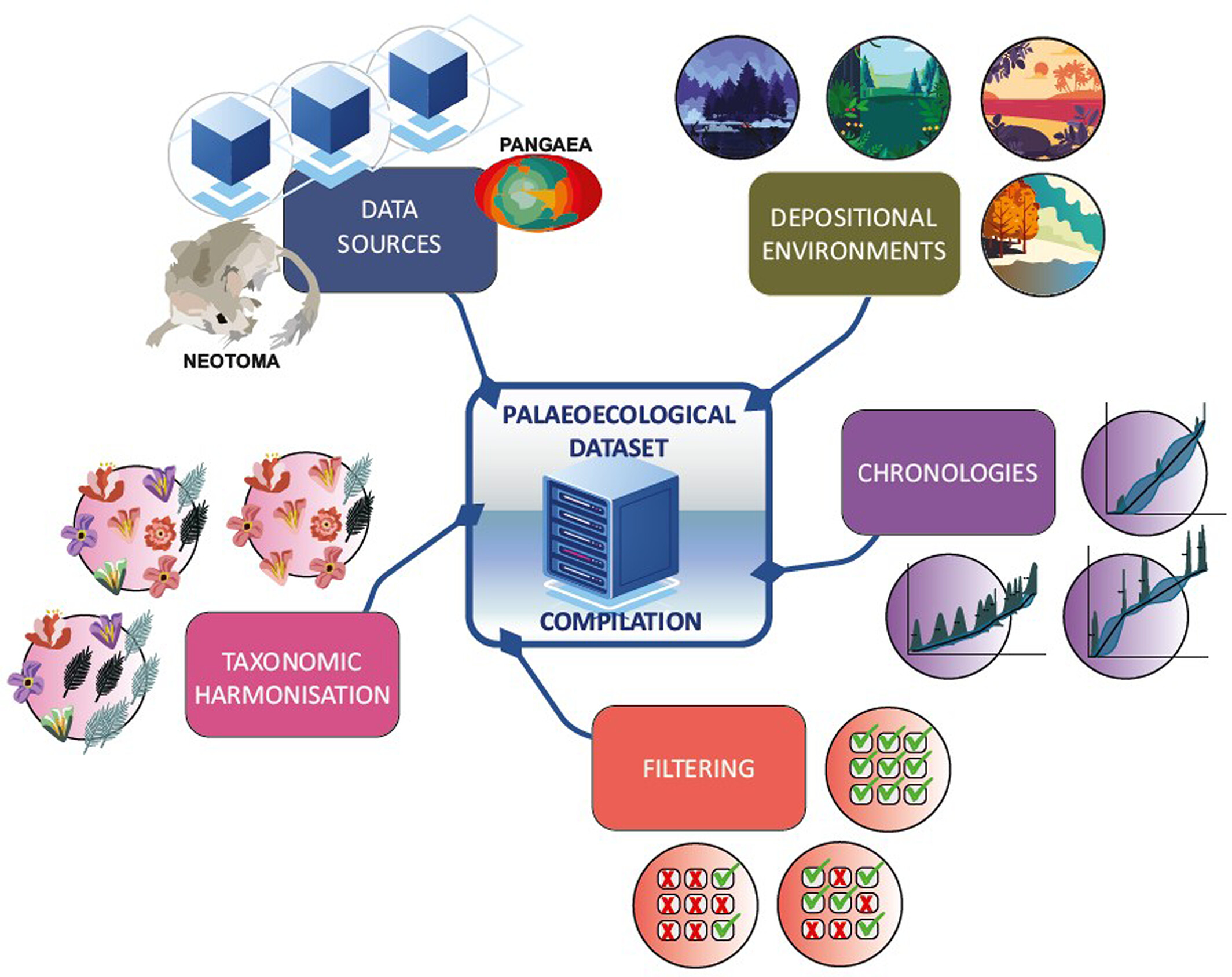

Data Processing II: Data Harmonization and Synthesis

Learning Objectives

In this session, we’ll walk through how to effectively visualize data. We’ll cover:

Why data visualization is important
Strategies for effectively visualizing data
How to create basic graph types in R

You’ll also walk away with some example code to modify and adapt to your own work.

Plan for the Session

The session will be split into the following sections:

Theory of data visualization
Data visualization practical

Schedule

1:30–3:15 PM

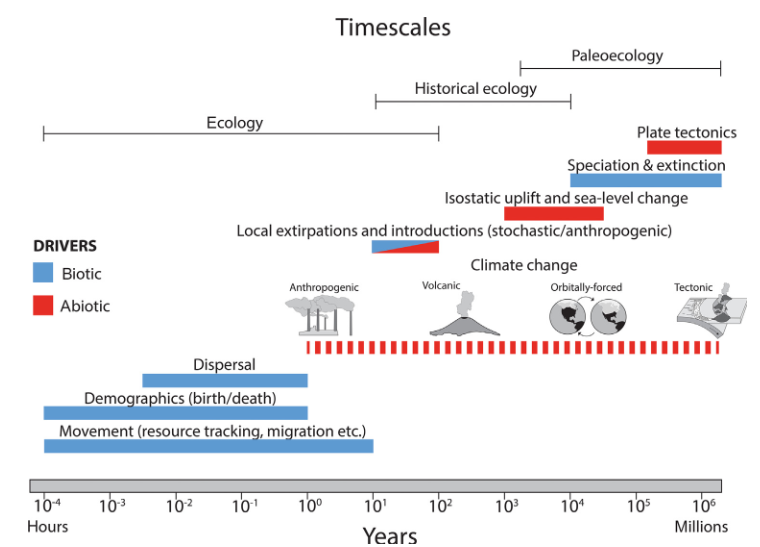

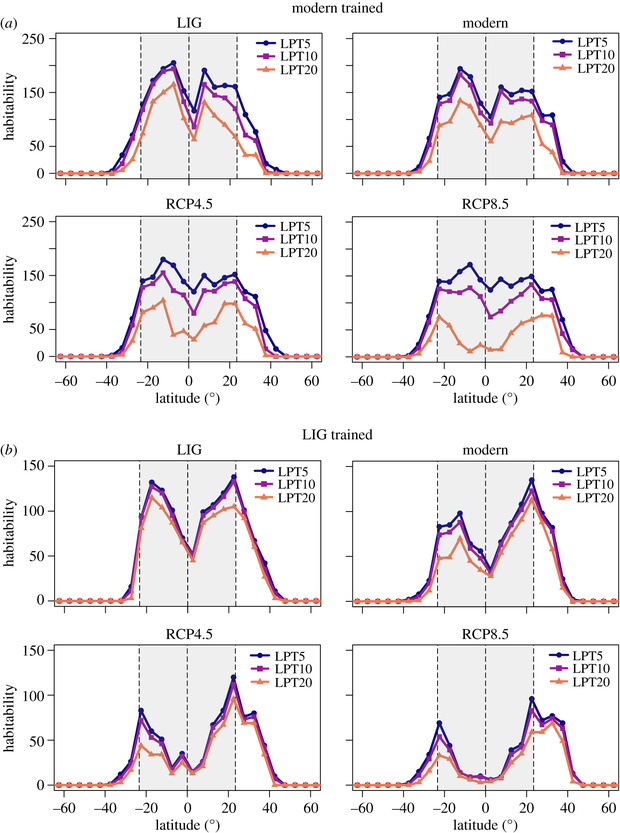

I. Theory of data visualization

II. Data visualization practical

Getting familiar with ggplot2

ggplot2 is designed around the “grammar of graphics.” In most cases you start with ggplot() and then supply a dataset and “aesthetic” mappings (with aes()). You then add on individual layers (like geom_point() or geom_histogram()) to add the visualization(s) that you want. Let’s first try making a scatterplot using some built-in data about car mileage (mpg). In this case, we’ll plot the highway mileage with respect to the engine size (displacement). Note that in this case, instead of calling functions separately, we chain them together with the + operator.

# load the ggplot2 package
library(ggplot2)

# check out the mileage data
head(mpg)

# A tibble: 6 × 11
  manufacturer model displ  year   cyl trans      drv     cty   hwy fl    class
  <chr>        <chr> <dbl> <int> <int> <chr>      <chr> <int> <int> <chr> <chr>
1 audi         a4      1.8  1999     4 auto(l5)   f        18    29 p     compa…
2 audi         a4      1.8  1999     4 manual(m5) f        21    29 p     compa…
3 audi         a4      2    2008     4 manual(m6) f        20    31 p     compa…
4 audi         a4      2    2008     4 auto(av)   f        21    30 p     compa…
5 audi         a4      2.8  1999     6 auto(l5)   f        16    26 p     compa…
6 audi         a4      2.8  1999     6 manual(m5) f        18    26 p     compa…

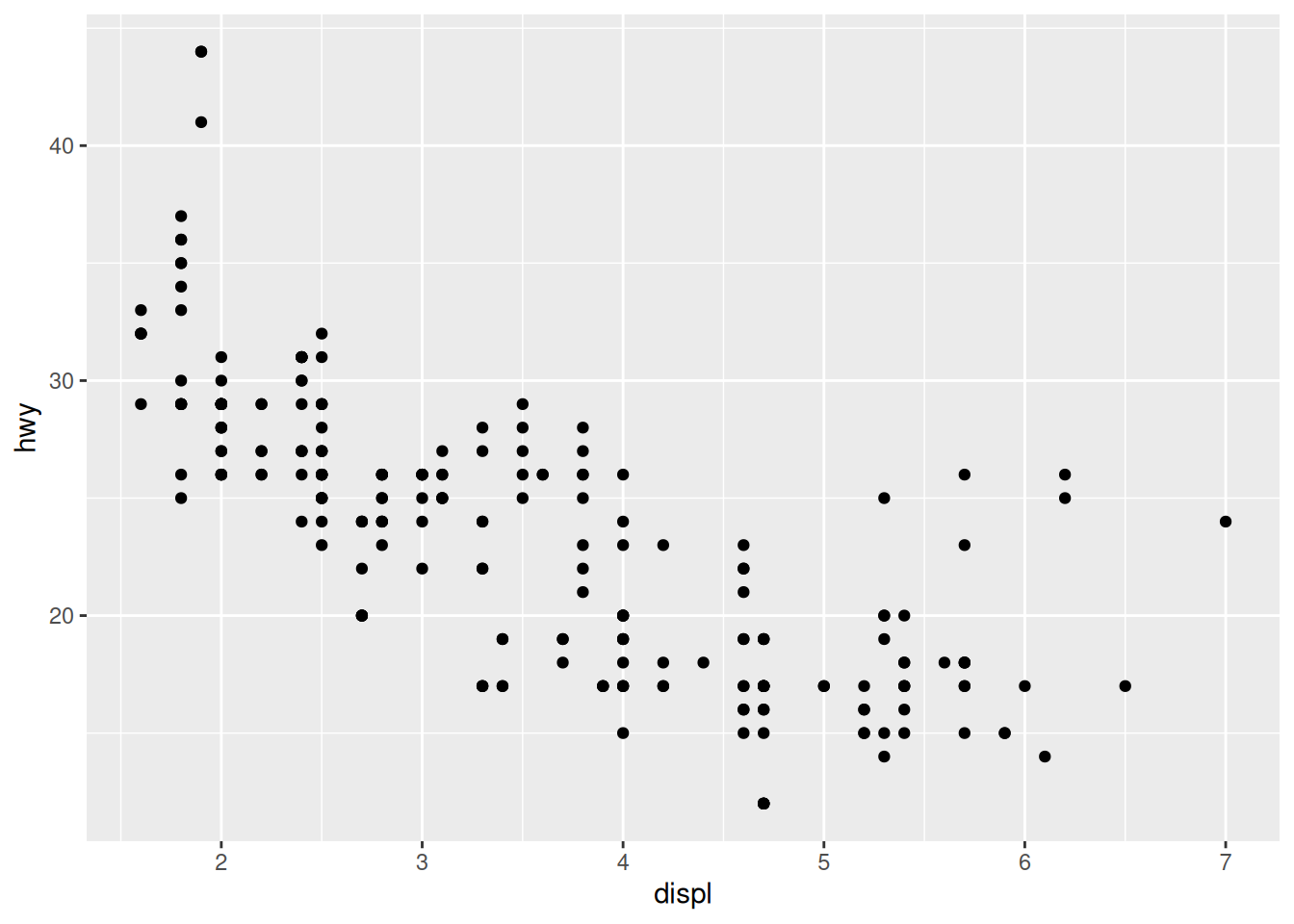

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point()

You’ll notice that with just a couple of lines, we’ve already made a pretty nice visualization. ggplot2 does most of the work for us once we specify our x and y variables. Let’s go a step further and color the points by another variable (e.g., the class of the car). With ggplot2, all that requires is specifying another aesthetic:

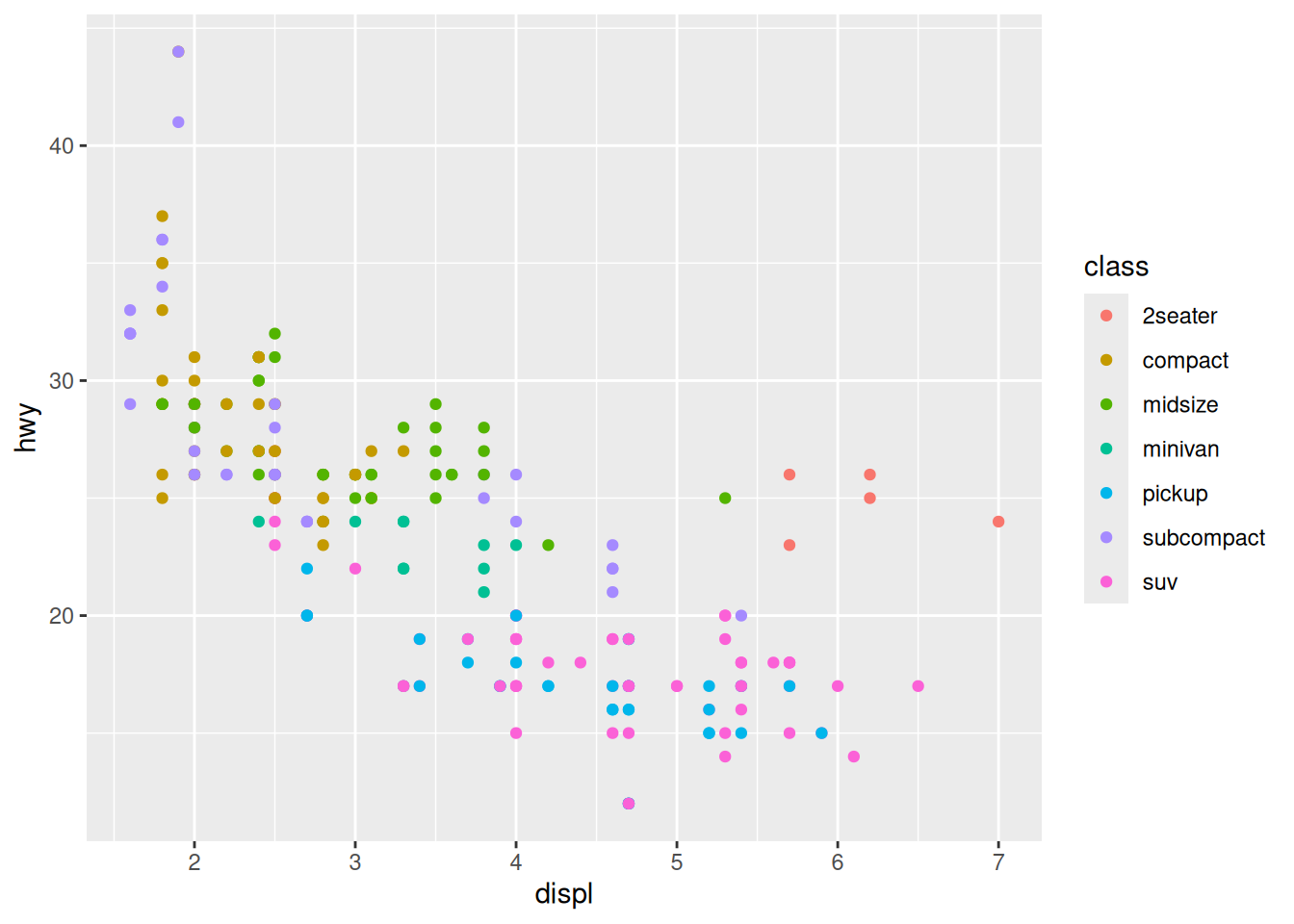

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point()

Notice that ggplot2 comes with its own default color scheme. I would discourage you from using the default colors. Instead, we’ll try out some of the accessible color palettes we talked about earlier. First, let’s try one of the viridis color palettes. Since this palette is included in ggplot2, all we need to do is add the proper “scale” to our ggplot() call.

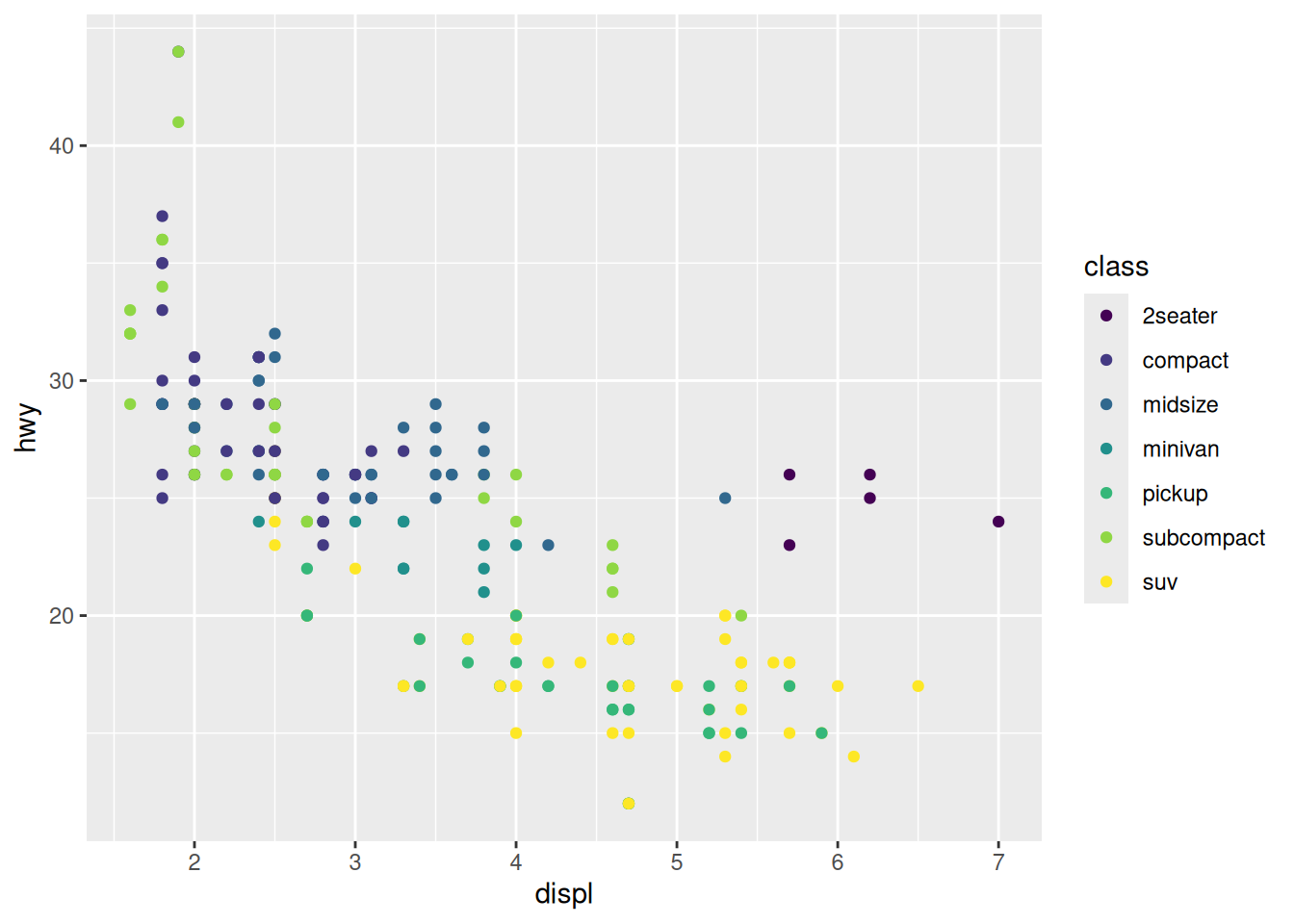

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point() + #adds the points
  scale_color_viridis_d() #applies the viridis color palette

Hmm…with this many colors, it becomes a little hard to distinguish between the colors with this color palette. Let’s try one of the brewer color palettes.

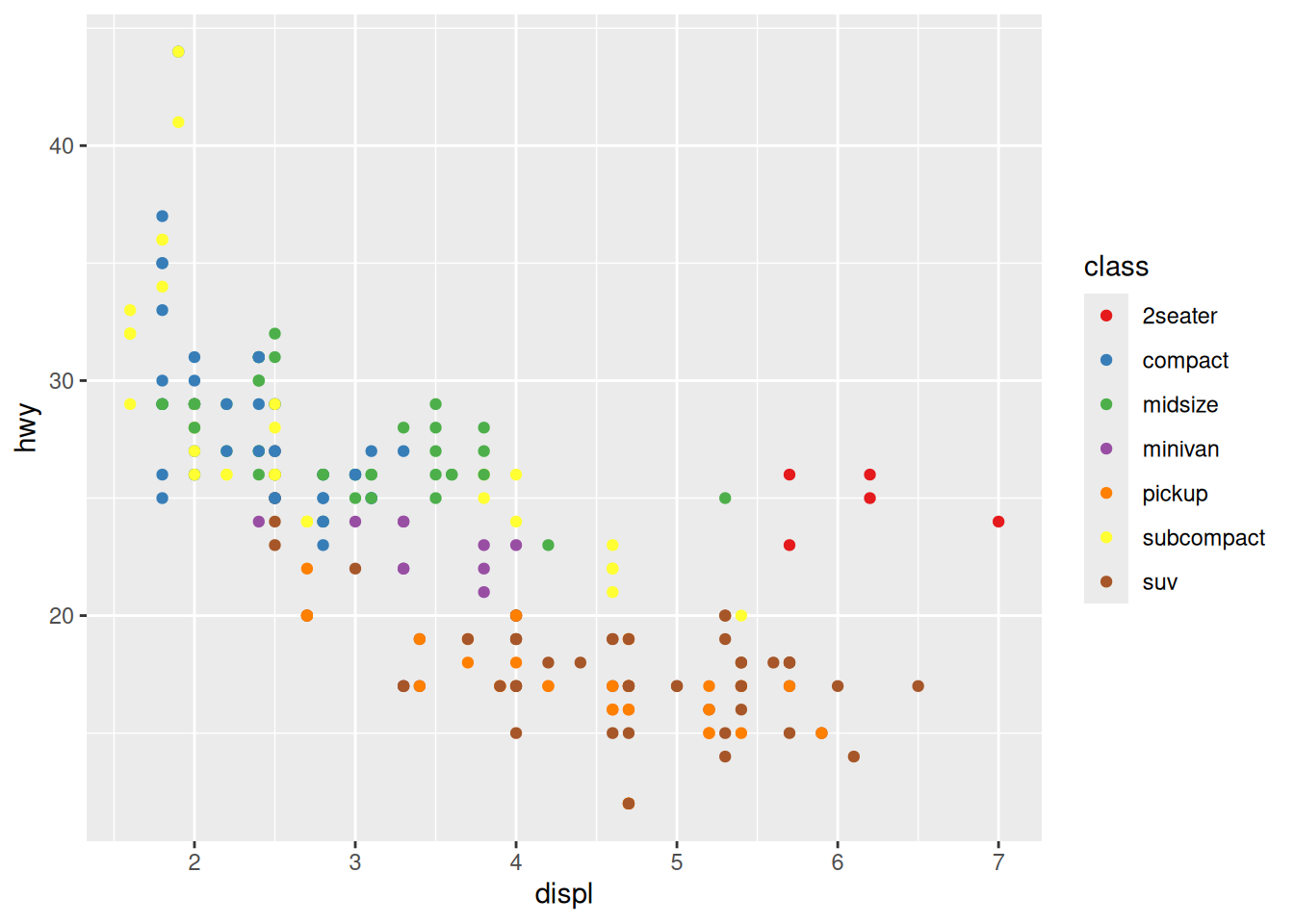

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point() +
  scale_color_brewer(palette = "Set1") #changing the color palette

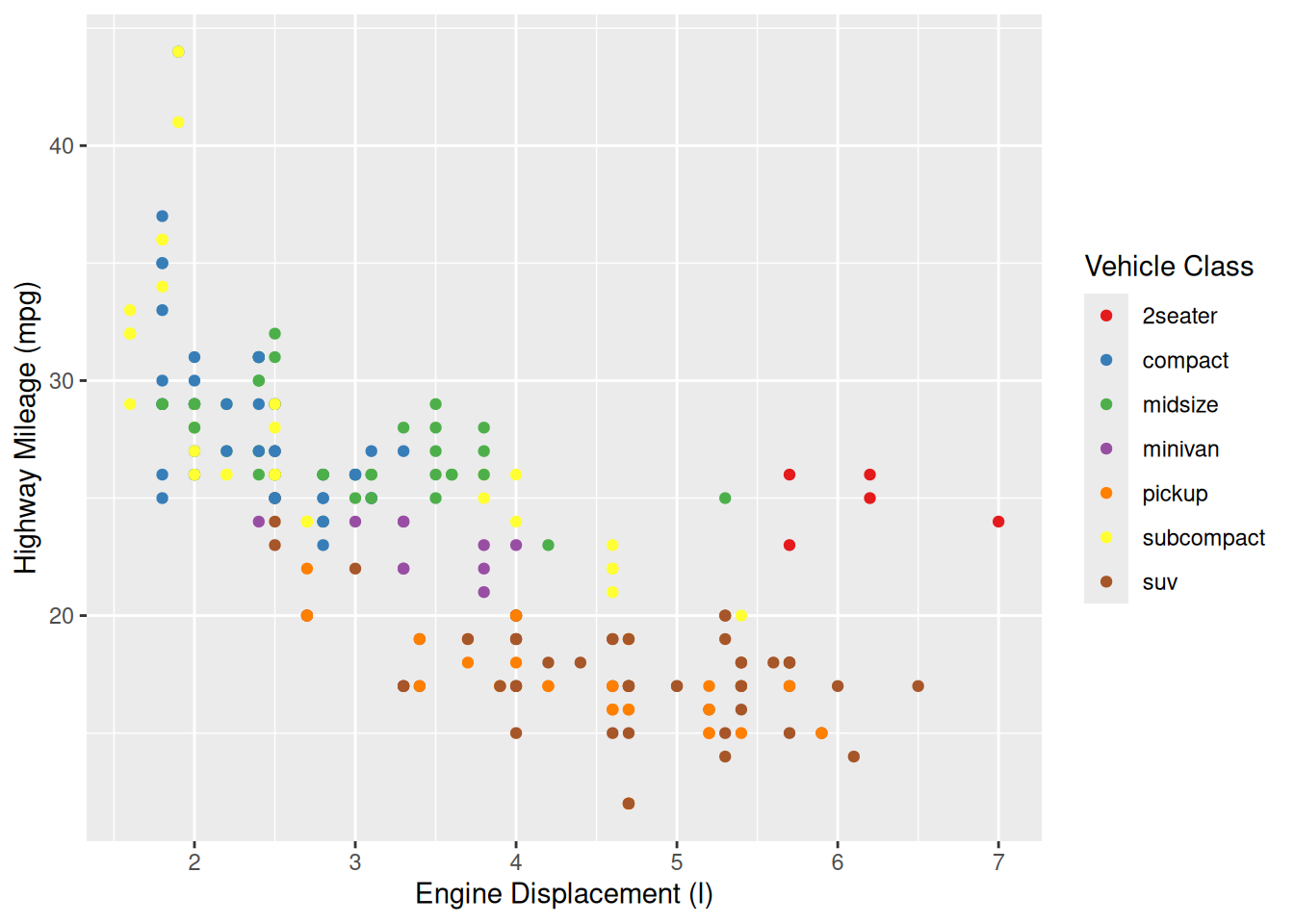

Outside of color, there are many other aspects of the graph that we can modify using the “scale” functions. For example, we can modify the x and y axes:

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point() +
  scale_color_brewer(name = "Vehicle Class", palette = "Set1") +
  scale_x_continuous(name = "Engine Displacement (l)") + #adding x axis label
  scale_y_continuous(name = "Highway Mileage (mpg)") #adding y axis label

Theming

The last basic thing you might want to do with ggplot2 is modify the style of the visualization. This is extremely customizable, but the first place to start is with a built-in theme. For example, here’s what the classic theme looks like:

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point() +
  scale_color_brewer(name = "Vehicle Class", palette = "Set1") +
  scale_x_continuous(name = "Engine Displacement (l)") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  theme_classic() #applies the classic theme

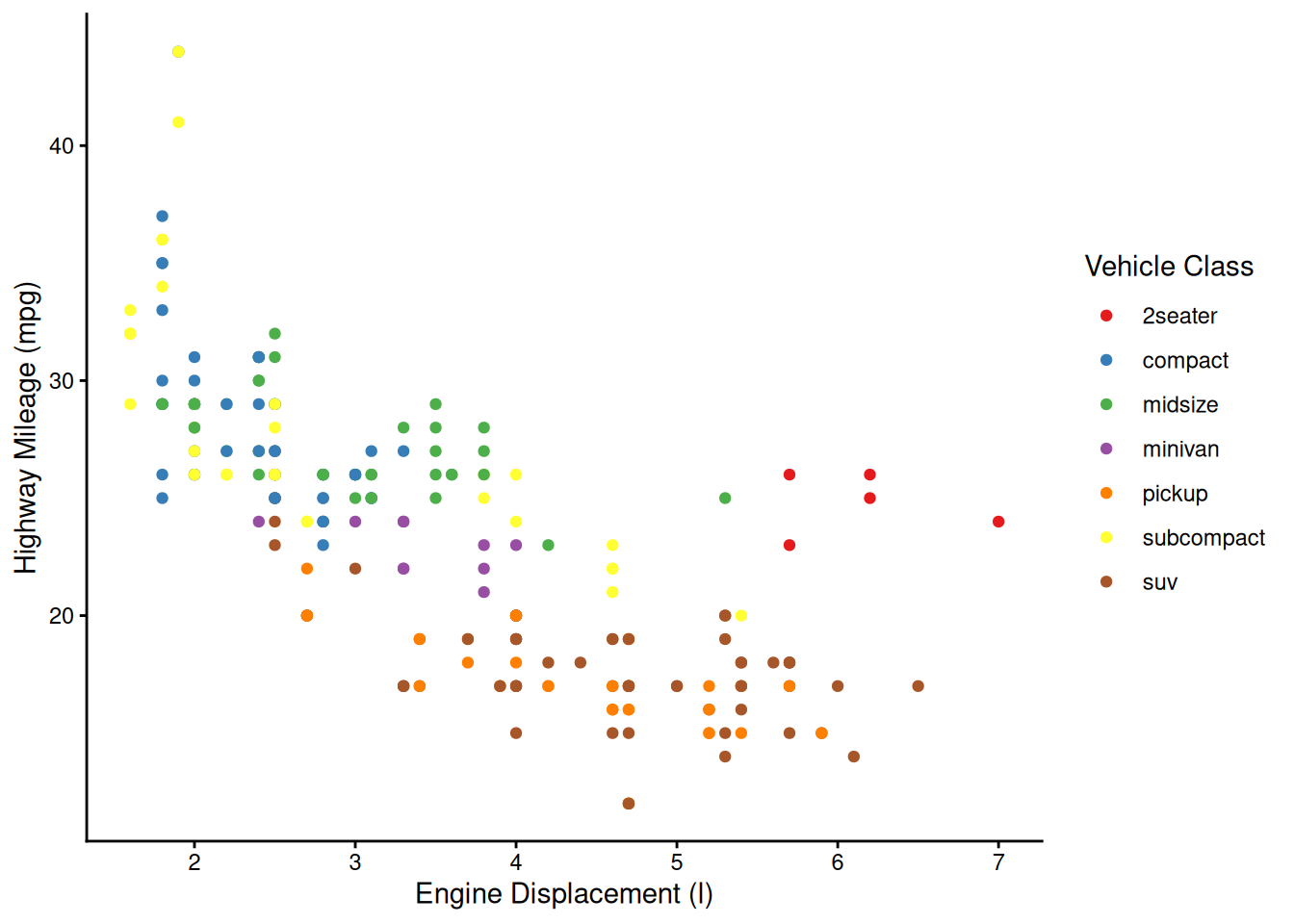

Using this built-in theme has changed many visual aspects of the graph, including changing the plot background color, adding axis lines, and removing the internal grid lines. If you look very closely, however, the axis tick labels are still a slight grey. We can use the theme() function to further customize the appearance and change this. In this case, we’ll make the axis text elements have a black color.

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point() +
  scale_color_brewer(name = "Vehicle Class", palette = "Set1") +
  scale_x_continuous(name = "Engine Displacement (l)") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  theme_classic() +
  theme(axis.text = element_text(color = "black")) #modifies the axis text

And there we have it! With just 7 lines of code, we’ve created what I would say is a publication quality graph! ggplot does a lot of the tedious work for you, giving you time to focus on the more important aspects, such as labeling and color. Admittedly, I’ve spent a LOT of time on these aspects in the past…

For comparison, here’s how we would produce a similar graph using only R’s built-in (base) plotting functions. It’s worth taking a moment to see how ggplot’s additive functions all work together to produce a final product, whereas base R requires lots of simultaneous arguments inside a single function, plus sequential additive functions that ggplot accounts for by default (e.g., adding a legend).

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point() +
  scale_color_brewer(name = "Vehicle Class", palette = "Set1") +
  scale_x_continuous(name = "Engine Displacement (l)") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

plot(x = mpg$displ, y = mpg$hwy,
     col = factor(mpg$class), pch = 16,
     xlab = "Engine Displacement (l)",
     ylab = "Highway Mileage (mpg)")
legend("topright", legend = unique(mpg$class), cex = 0.8,
       pch = 16, col = unique(factor(mpg$class)),
       ncol = 2, bty = 'n', title = "Vehicle Class")

More information about all of the hierarchical theme components that you can customize is available here. In order to change many of these components, you need to use theme elements like we did above with element_text(). That and other theme elements are documented here.

More complex features

Facetting

Let’s take our scatterplot example from earlier and make it a little more complex with another aesthetic:

ggplot(mpg, aes(x = displ, y = hwy, color = class, shape = drv)) +  #adds a grouping variable (drive type) displayed as different shapes
  geom_point() +
  scale_color_brewer(name = "Vehicle Class", palette = "Set1") +
  scale_shape_discrete(name = "Drive Type") +
  scale_x_continuous(name = "Engine Displacement (l)") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

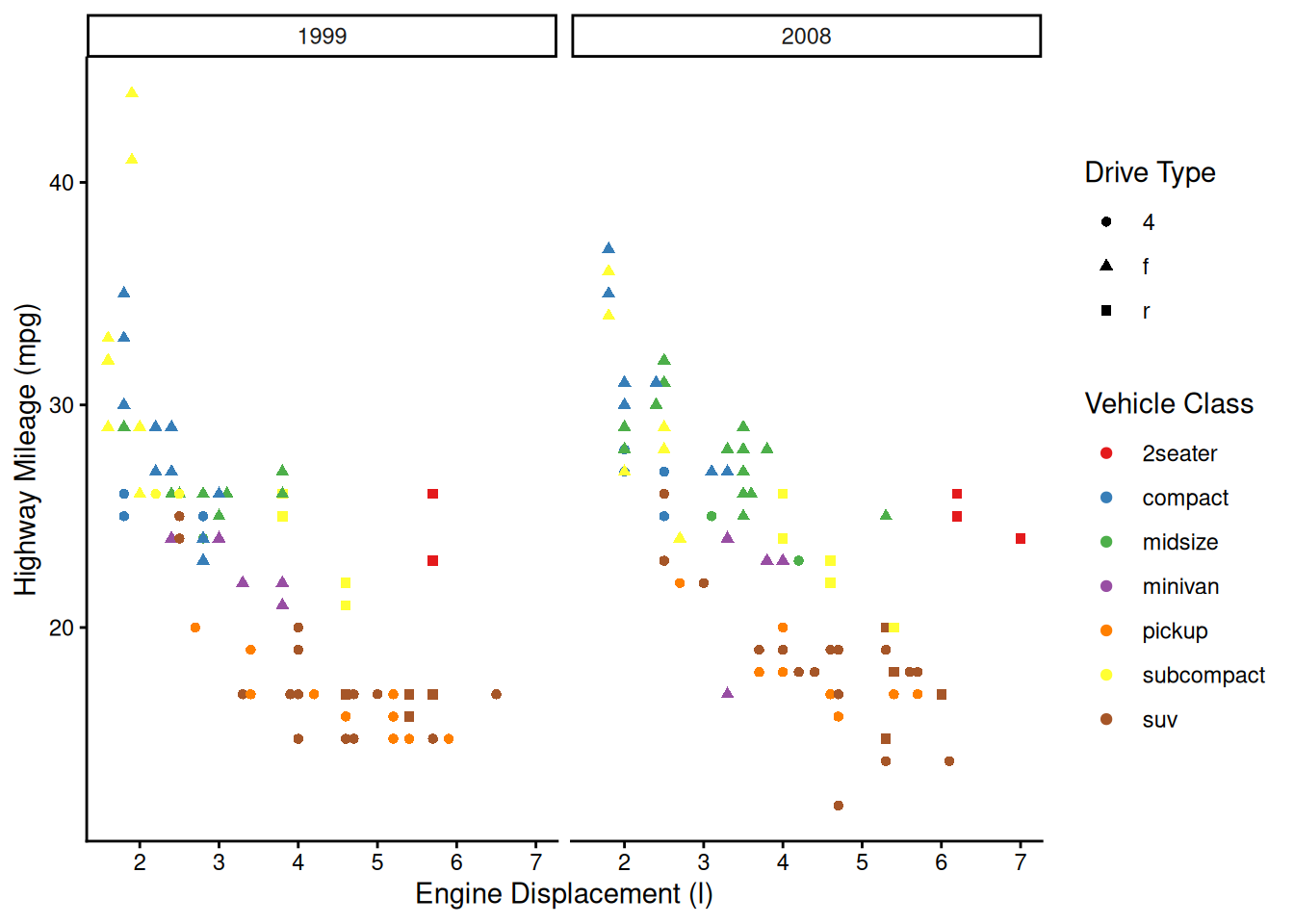

Now, what if we wanted to also split the data by the years the cars were manufactured? We’re already using color and shape, so what other aesthetic could we use? We could possible use some shapes that have both a fill and outline color, but that sounds messy. Instead of using another aesthetic, we could also use a facet. This splits the chart into multiple panels:

ggplot(mpg, aes(x = displ, y = hwy, color = class, shape = drv)) +
  geom_point() +
  scale_color_brewer(name = "Vehicle Class", palette = "Set1") +
  scale_shape_discrete(name = "Drive Type") +
  scale_x_continuous(name = "Engine Displacement (l)") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  facet_wrap(vars(year)) + #facets by year
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

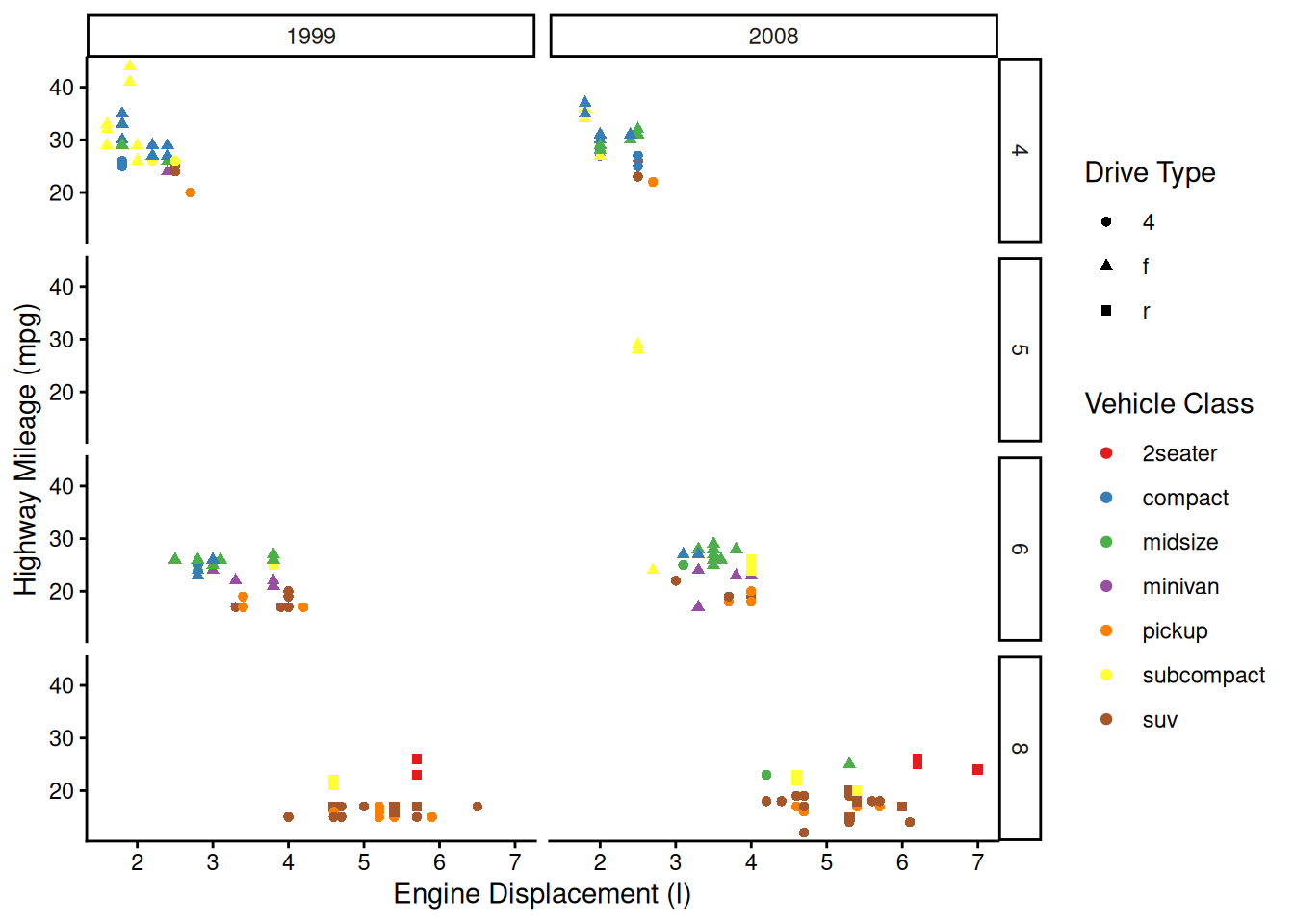

We can get even crazier by faceting by multiple variables:

ggplot(mpg, aes(x = displ, y = hwy, color = class, shape = drv)) +
  geom_point() +
  scale_color_brewer(name = "Vehicle Class", palette = "Set1") +
  scale_shape_discrete(name = "Drive Type") +
  scale_x_continuous(name = "Engine Displacement (l)") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  facet_grid(rows = vars(cyl), cols = vars(year)) + #facets by number of cylinders and by year
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

OK, maybe we’ve gone a little too far here, but you get the picture!

Other layers

There are many other types of plots that we can make with ggplot2.

Histograms

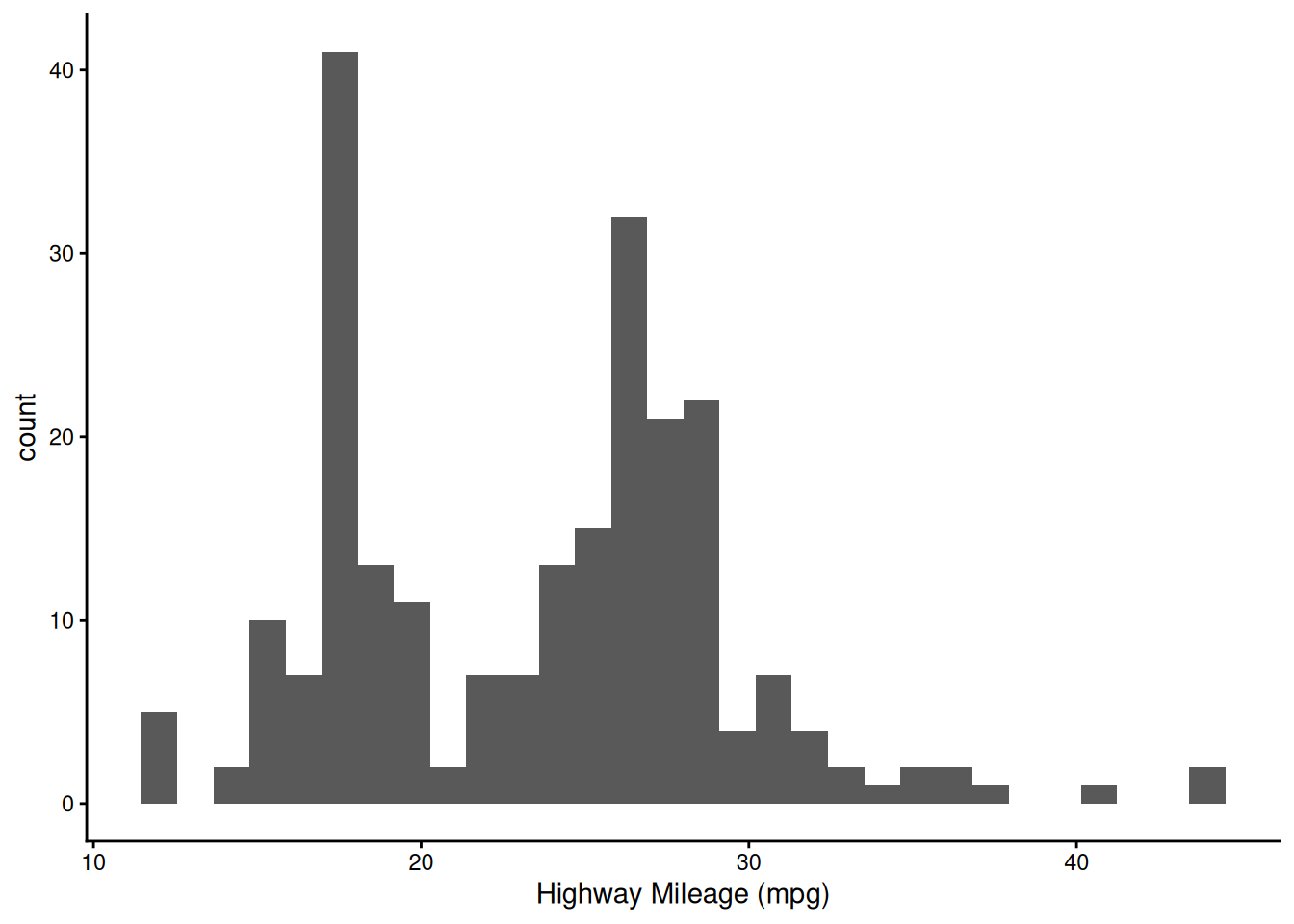

We can visualize the density of values for a single variable with a histogram:

ggplot(mpg, aes(x = hwy)) +
  geom_histogram() + #creates a histogram of the variable hwy
  scale_x_continuous(name = "Highway Mileage (mpg)") +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Note how histograms don’t require a y-axis aesthetic by default. The counts are tabulated for you.

Boxplots and Violin Plots

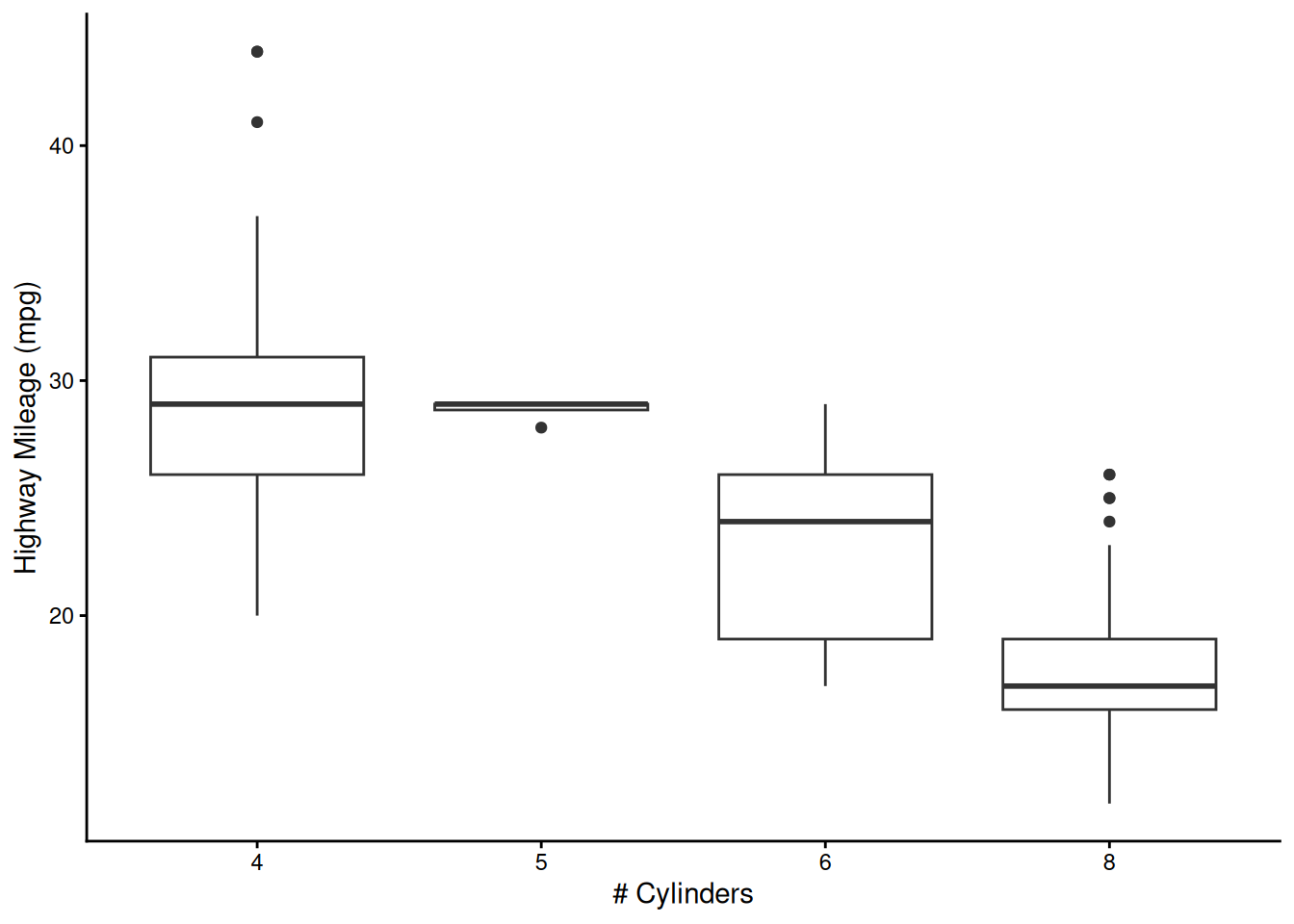

We can visualize the density of values for a single variable across a discrete variable with boxplots or violin plots:

ggplot(mpg, aes(x = as.factor(cyl), y = hwy)) +
  geom_boxplot() + #creates a boxplot
  scale_x_discrete(name = "# Cylinders") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

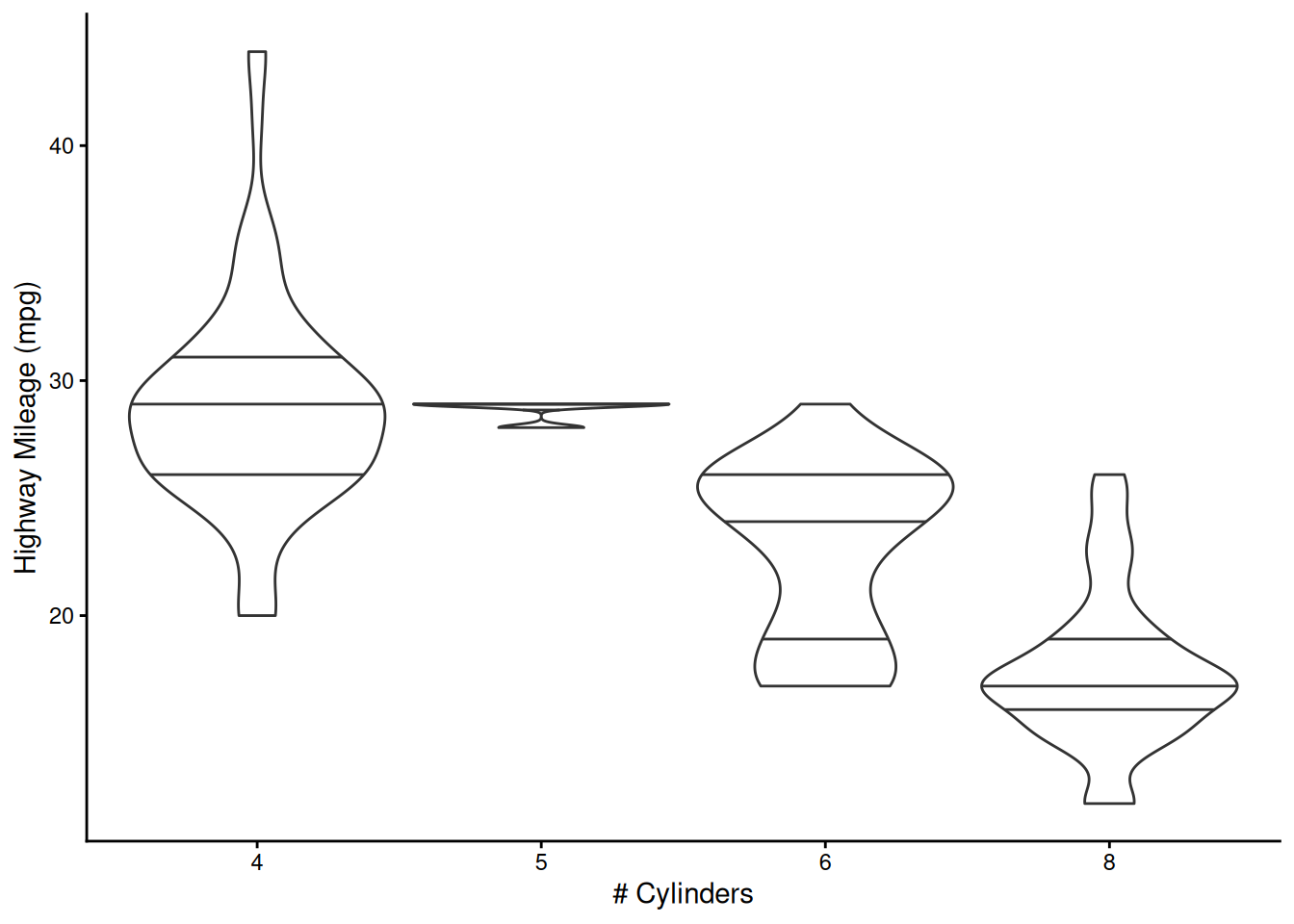

ggplot(mpg, aes(x = as.factor(cyl), y = hwy)) +
  geom_violin(scale = "width", draw_quantiles = c(0.25, 0.5, 0.75)) + #creates a violin plot
  scale_x_discrete(name = "# Cylinders") +
  scale_y_continuous(name = "Highway Mileage (mpg)") +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Warning: The `draw_quantiles` argument of `geom_violin()` is deprecated as of ggplot2
4.0.0.
ℹ Please use the `quantiles.linetype` argument instead.

Note that many of these “geoms” have lots of options. For example, we’ve decided to scale all of the violin plots to the same width and to draw the quartiles on them (mimicking the boxplots above).

2D Contours

We can also visualize the density of values across two continuos variables using a 2D contour. Here we’ll use the built-in Old Faithful waiting time/eruption duration data (faithful). We’ll expand the axes a little bit to better show the contours:

ggplot(faithful, aes(x = eruptions, y = waiting)) +
  geom_density_2d(linewidth = 0.25, colour = "black") + #creates a contour plot
  xlim(0.5, 6) + #adjusting limits of x axis
  ylim(35, 110) + #adjusting limits of y axis
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Combining layers

We can also combine multiple layers to show the same data in different ways in the same plot. For example, we could show the raw data for the above contour plot in addition to the contours:

ggplot(faithful, aes(x = eruptions, y = waiting)) +
  geom_point() +
  geom_density_2d_filled(alpha = 0.5) +
  geom_density_2d(linewidth = 0.25, colour = "black") + #this is how we can layer visualizations
  xlim(0.5, 6) +
  ylim(35, 110) +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Note that, when combining layers, the layers are added to the plot in order, so in this case the points are the bottom layer and the contour lines are the top layer. We changed the alpha of the middle layer to prevent the points from being blocked.

Time Series

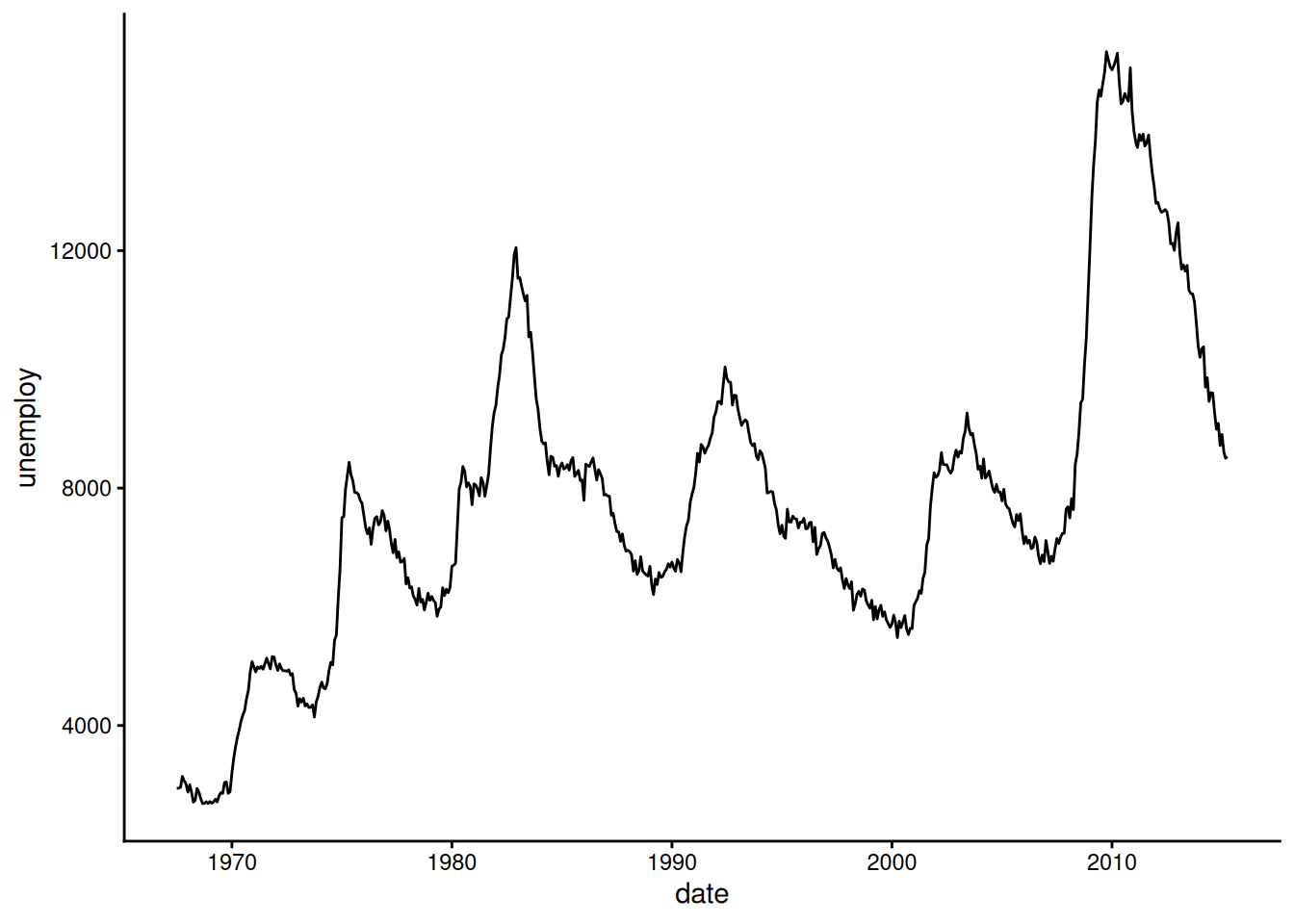

We’ll use the built-in economics dataset to explore visualizing a time series. In this case, we are looking at unemployment over time:

ggplot(economics, aes(x = date, y = unemploy)) +
  geom_line() + #creates a line plot
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

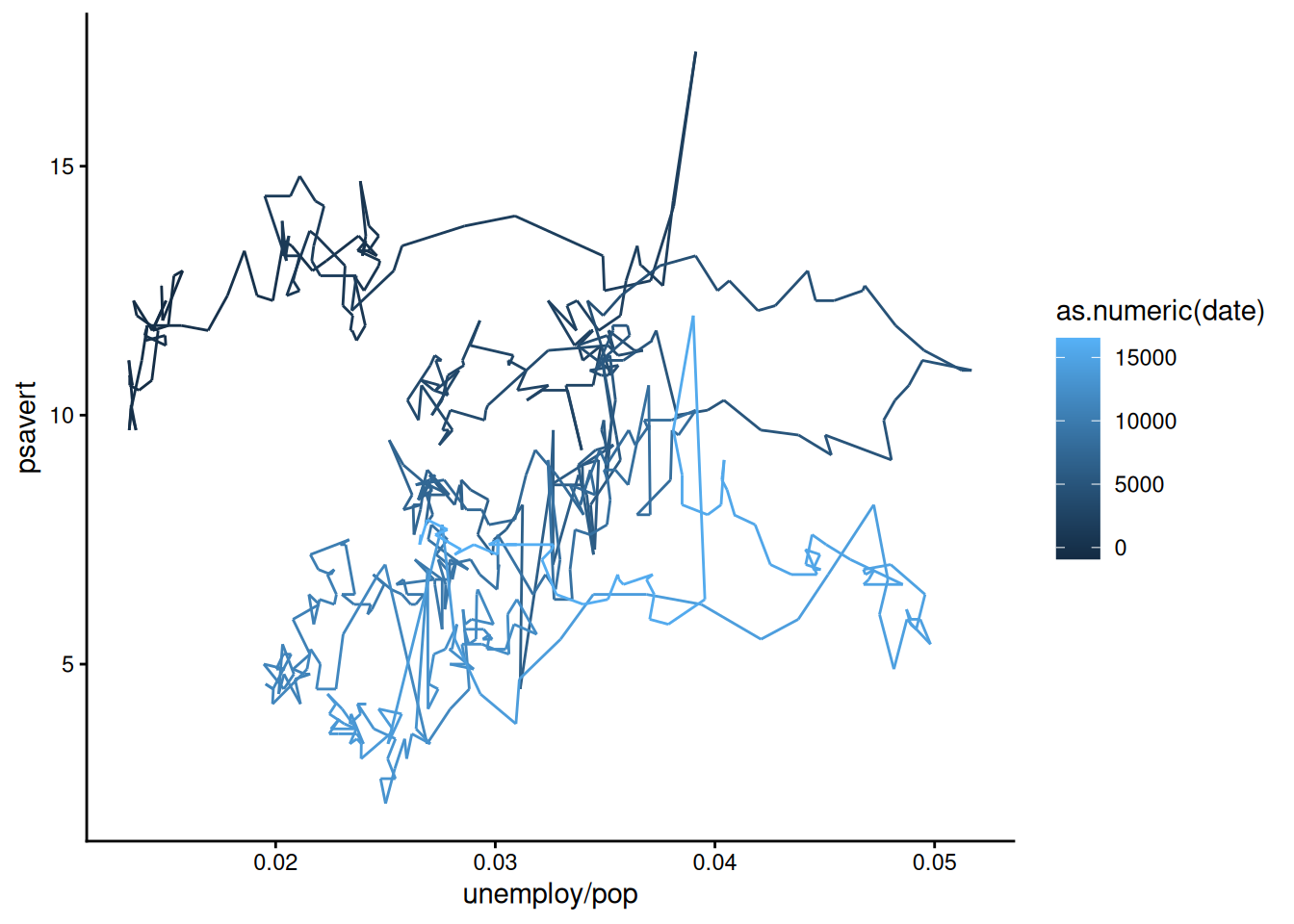

geom_path() lets you explore how two variables are related over time. For example, unemployment and personal savings rate:

ggplot(economics, aes(x = unemploy/pop, y = psavert)) +
  geom_path(aes(colour = as.numeric(date))) +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Note how we’ve used multiple columns of the data to define the x-axis here.

BREAKOUT SESSION 1

Practice Time!

Your turn! Let’s see what you and those sitting around you can produce using the iris dataset built into R. Here’s a basic plot of Sepal Length versus Petal Length:

#look at the data (i.e., what do we have to play with?)
head(iris)

  Sepal.Length Sepal.Width Petal.Length Petal.Width Species
1          5.1         3.5          1.4         0.2  setosa
2          4.9         3.0          1.4         0.2  setosa
3          4.7         3.2          1.3         0.2  setosa
4          4.6         3.1          1.5         0.2  setosa
5          5.0         3.6          1.4         0.2  setosa
6          5.4         3.9          1.7         0.4  setosa

#visualize the data
ggplot(iris, aes(x = Sepal.Length, y = Petal.Length)) +
  geom_point()

Edit the R script directly above by changing the variables, coloring the points by species, fixing the axis labels, etc.

Visualizing paleo data

Now let’s take a stab at visualizing some paleo data! First, let’s load and prepare the packages we are going to need.

library(palaeoverse) # for data
library(ggplot2) # for plots
library(deeptime) # for fun plot additions

Now let’s prepare our reef data that comes with the palaeoverse package:

# Assign a common time scale based on an interval key
data(reefs)
reefs <- look_up(occdf = reefs,
                 early_interval = "interval",
                 late_interval = "interval",
                 int_key = interval_key)
# Remove pre-Phanerozoic data to focus our study
reefs <- subset(reefs, interval_max_ma <= 541)
# Extract Phanerozoic stage-level stages for time bins
bins <- time_bins(interval = "Phanerozoic", rank = "stage")
# bin_time requires "max_ma" and "min_ma" columns
colnames(reefs)[which(colnames(reefs) == "interval_max_ma")] <- "max_ma"
colnames(reefs)[which(colnames(reefs) == "interval_min_ma")] <- "min_ma"
reefs <- bin_time(occdf = reefs, bins = bins, method = "all")
# Bin occurrence data
reefs_time <- group_apply(occdf = reefs, group = c("bin_assignment", "bin_midpoint"), fun = nrow)
# Clean these columns up
reefs_time$bin_assignment <- as.numeric(reefs_time$bin_assignment)
reefs_time$bin_midpoint <- as.numeric(reefs_time$bin_midpoint)
# Check output
head(reefs_time)

  nrow bin_assignment bin_midpoint
1    3            102      0.00210
2    3            101      0.00620
3    3            100      0.00995
4  117             99      0.07035
5   52             98      0.45150
6   34             97      1.28700

And now we plot the data:

ggplot(reefs_time, aes(x = bin_midpoint, y = nrow)) +
  geom_line() +
  scale_x_reverse("Time (Ma)", limits = c(541, 0), expand = expansion(0, 0)) +
  scale_y_continuous("Number of reefs per stage") +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Timescales

The deeptime package allows us to add a timescale to a ggplot2 plot with a single line (just like palaeoverse does in base R graphics). coord_geo() is one of many coordinate systems that exist in the ggplot2 ecosystems. Often coordinate systems are used to alter the positions of aesthetics, but in this case coord_geo() adds a timescale to one or more of the axes:

ggplot(reefs_time, aes(x = bin_midpoint, y = nrow)) +
  geom_line() +
  scale_x_reverse("Time (Ma)") +
  scale_y_continuous("Number of reefs per stage") +
  coord_geo(xlim = c(541, 0)) +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

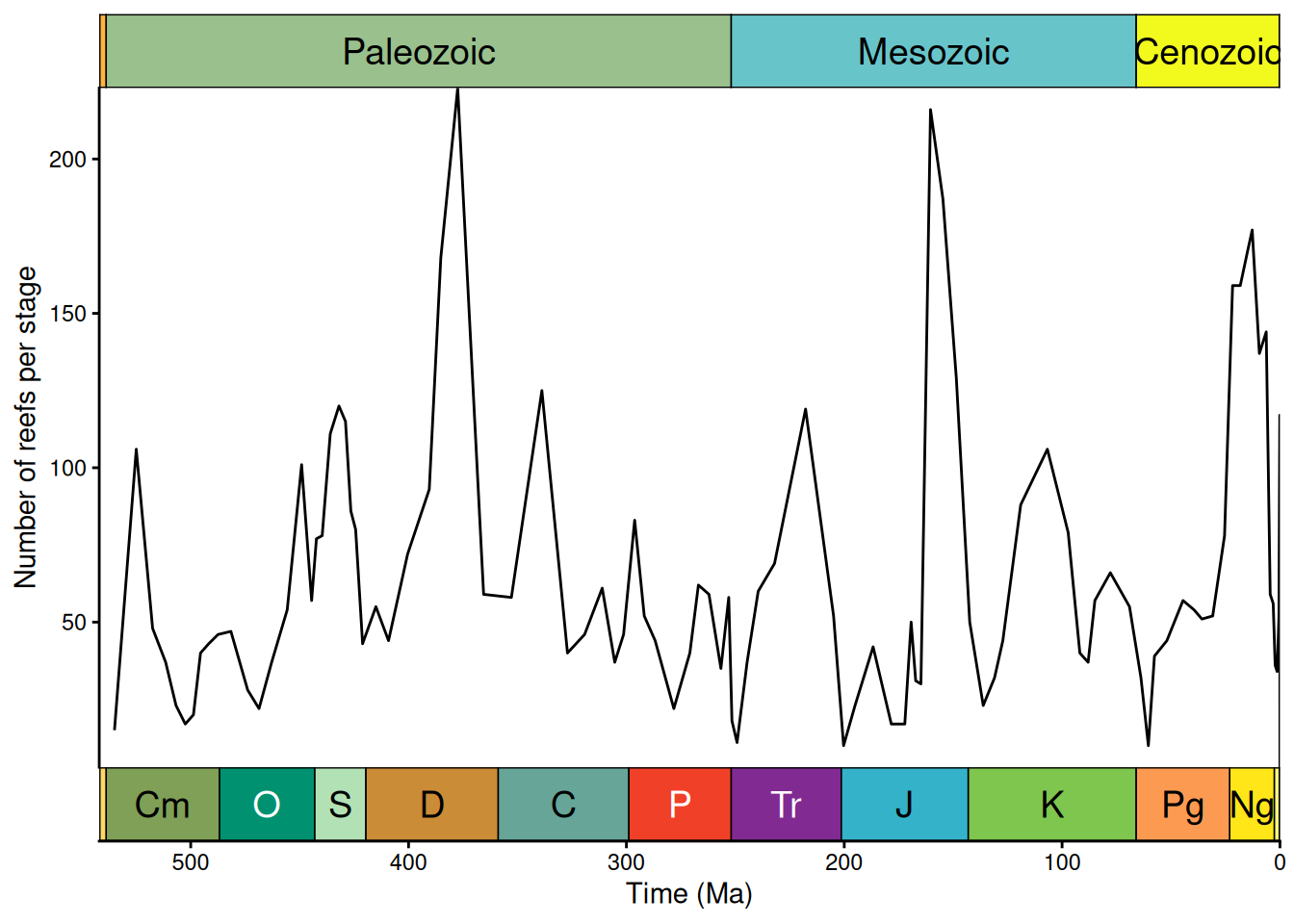

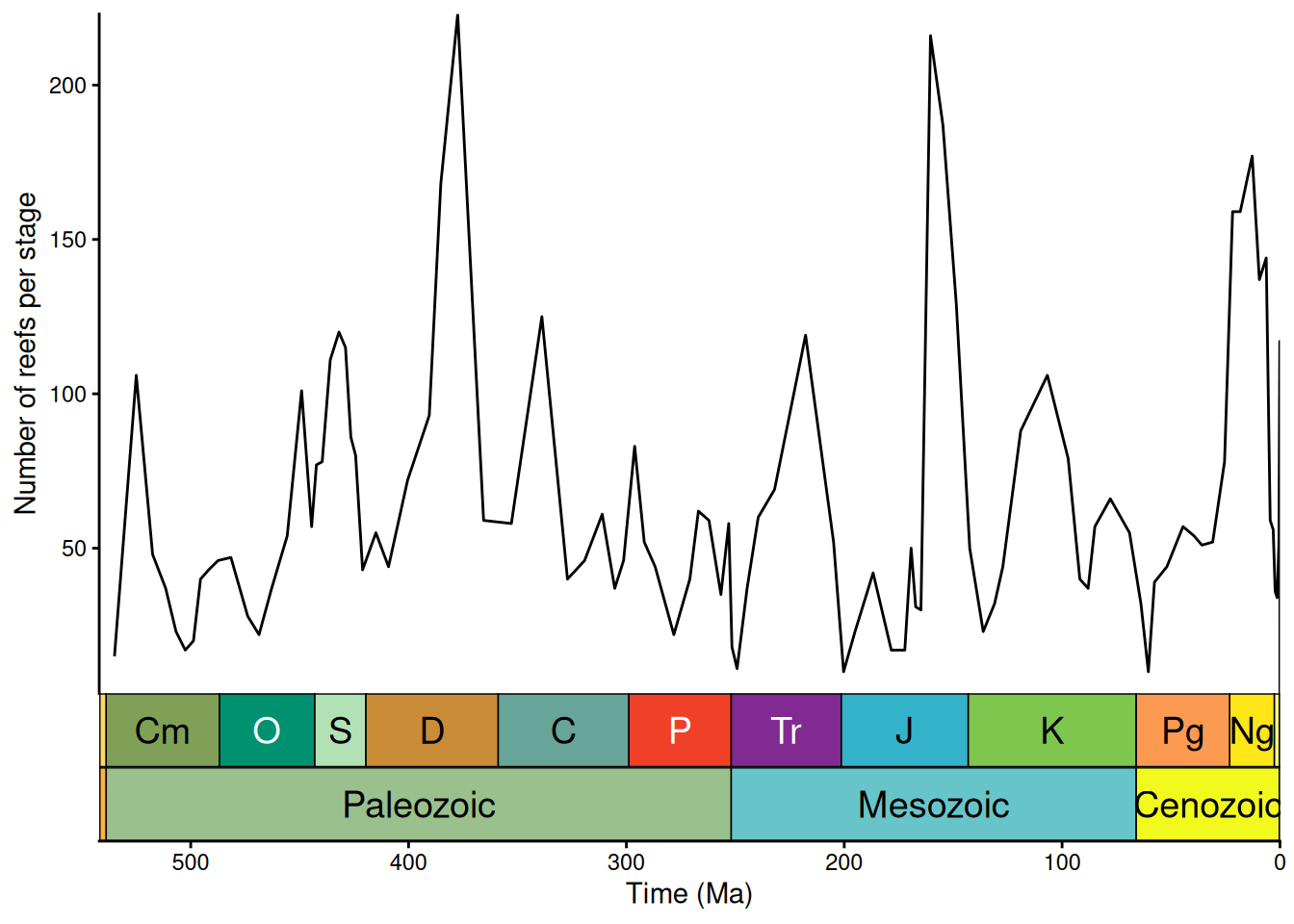

We can stack multiple timescales or have timescales on multiple sides:

ggplot(reefs_time, aes(x = bin_midpoint, y = nrow)) +
  geom_line() +
  scale_x_reverse("Time (Ma)") +
  scale_y_continuous("Number of reefs per stage") +
  coord_geo(
    dat = list("periods", "eras"), xlim = c(542, 0),
    pos = list("b", "b"), abbrv = list(TRUE, FALSE)
  ) +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

ggplot(reefs_time, aes(x = bin_midpoint, y = nrow)) +
  geom_line() +
  scale_x_reverse("Time (Ma)") +
  scale_y_continuous("Number of reefs per stage") +
  coord_geo(
    dat = list("periods", "eras"), xlim = c(542, 0),
    pos = list("b", "t"), abbrv = list(TRUE, FALSE)
  ) +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Timescale color palettes

Instead of a line graph/time series, we could plot these reef counts as a bar graph (geom_col() in this case). However, to give a little more life to our graph, we’ll go ahead and color each bar based on the official geological timescale color palette (included in deeptime). First we need to get the stage names and the beginnings and ends of the bins.

# Get stage names
reefs_time$stage <- bins$interval_name[reefs_time$bin_assignment]

# Get beginning and end of bins
reefs_time$bin_max_ma <- bins$max_ma[reefs_time$bin_assignment]
reefs_time$bin_min_ma <- bins$min_ma[reefs_time$bin_assignment]

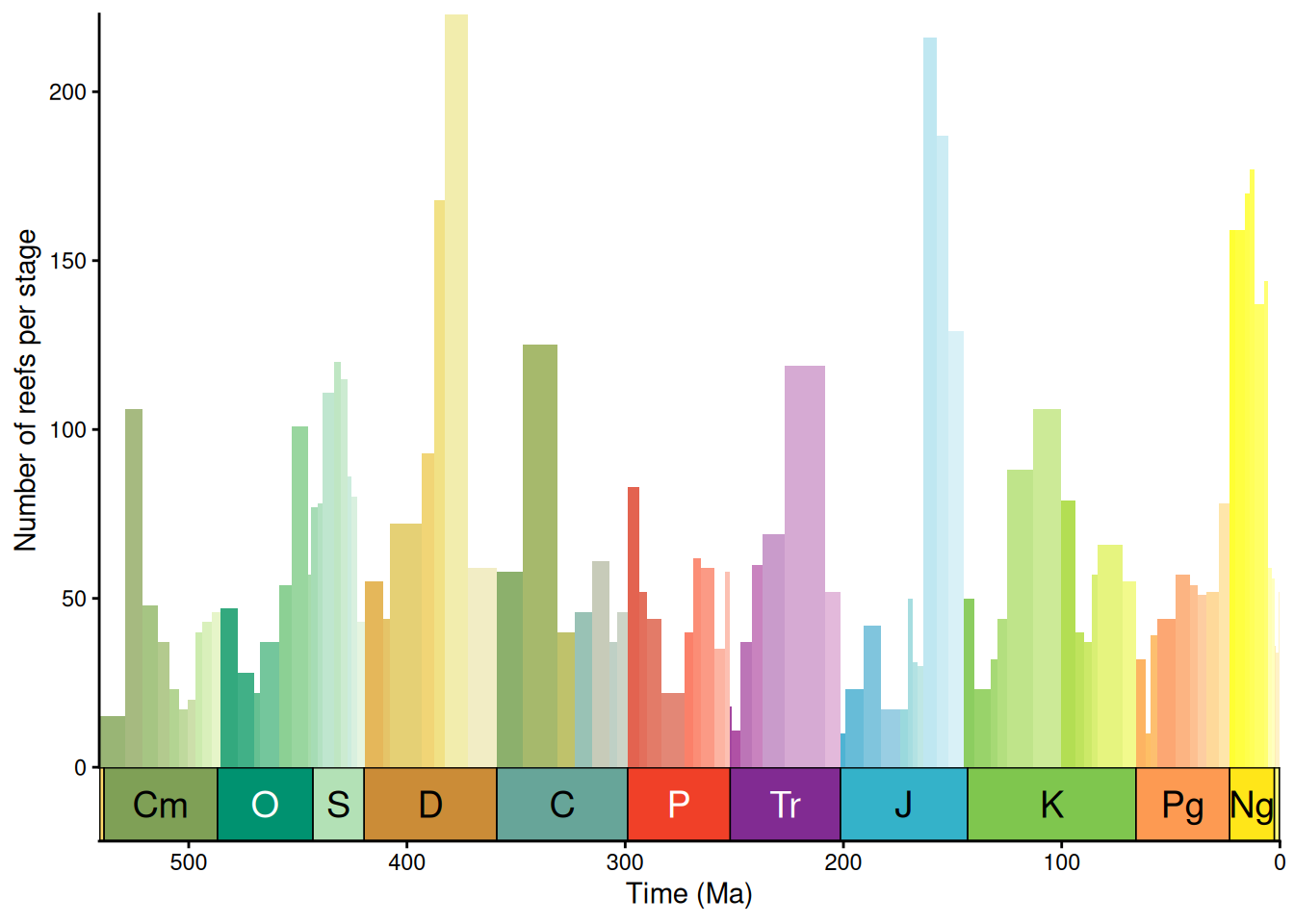

Then we can go ahead and make the desired bar graph:

ggplot(reefs_time, aes(x = bin_midpoint, y = nrow, fill = stage)) +
  geom_col(aes(width = bin_max_ma - bin_min_ma)) +
  scale_x_reverse("Time (Ma)") +
  scale_y_continuous("Number of reefs per stage") +
  scale_fill_geo(dat = "stages", guide = "none") +
  coord_geo(xlim = c(541, 0)) +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

We could also group the stages by era and color them based on that:

reefs_time$era <- cut(reefs_time$bin_midpoint,
                      breaks = c(0, 66, 252, 542),
                      labels = c("Cenozoic", "Mesozoic", "Paleozoic"))

ggplot(reefs_time, aes(x = bin_midpoint, y = nrow, fill = era)) +
  geom_col(aes(width = bin_max_ma - bin_min_ma)) +
  scale_x_reverse("Time (Ma)") +
  scale_y_continuous("Number of reefs per stage") +
  scale_fill_geo(dat = "eras", guide = "none") +
  coord_geo(xlim = c(541, 0)) +
  theme_classic() +
  theme(axis.text = element_text(color = "black"))

Plot occurrences through time

A common graph in paleontology is stratigraphic occurrences of taxa through time. The palaeoverse and deeptime packages have functions to instantly create graphs like these based on occurrence data. I’ll focus on the deeptime version here since it uses ggplot2. First we’ll grab some tetrapod occurrence data from the palaeoverse package and clean it up a little:

occdf <- subset(tetrapods, accepted_rank == "genus")
occdf <- subset(occdf, select = c(occurrence_no, accepted_name,
                                  max_ma, min_ma))
occdf$age <- (occdf$max_ma + occdf$min_ma) / 2
occdf <- subset(occdf, accepted_name %in% c("Eryops", "Dimetrodon",
                                            "Diadectes", "Diictodon",
                                            "Ophiacodon", "Diplocaulus",
                                            "Benthosuchus"))

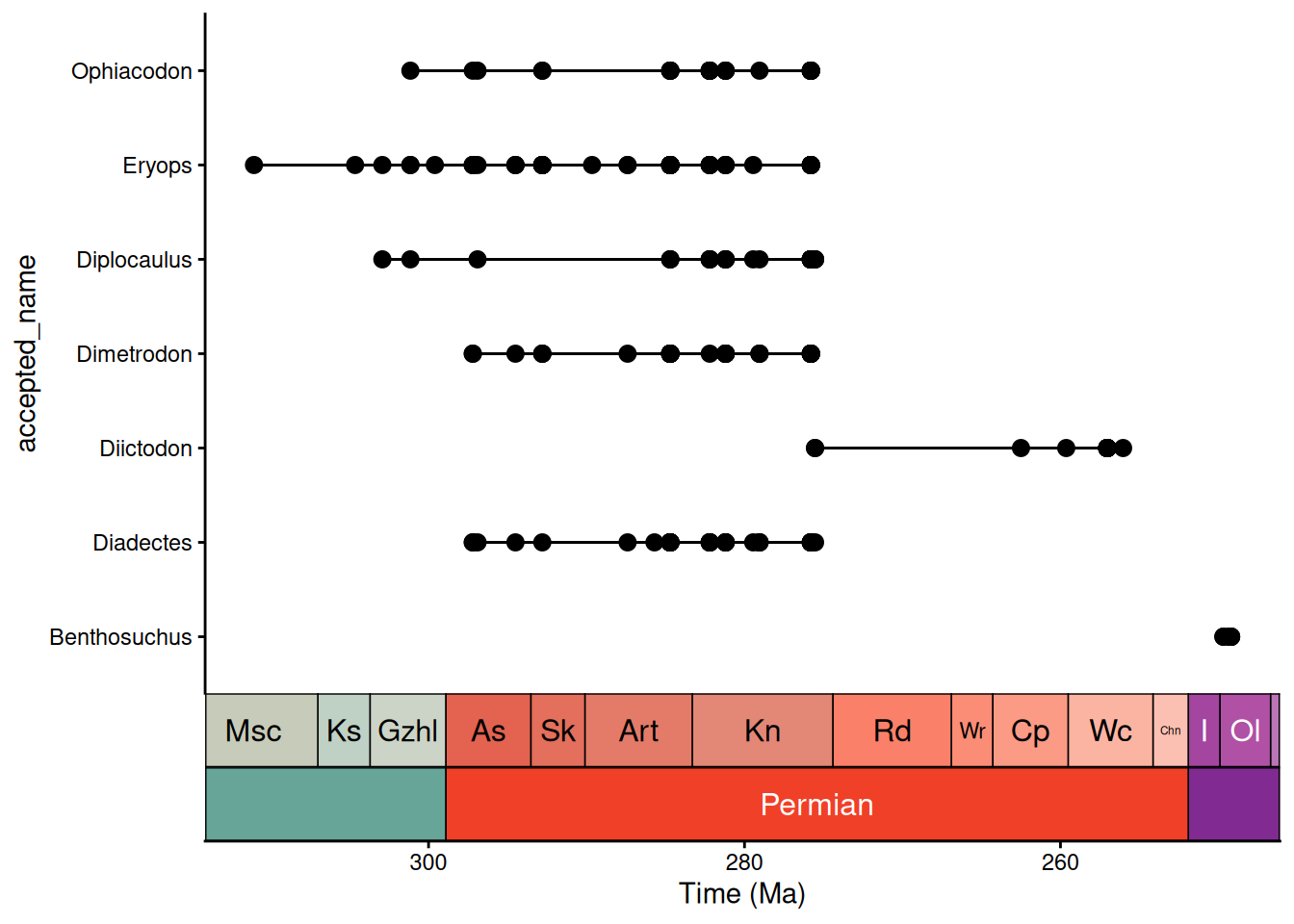

Now we’ll use geom_points_range() to plot the occurrences as points and ranges:

# plot those occurrences
ggplot(data = occdf) +
  geom_points_range(aes(x = age, y = accepted_name)) + #plots occurrences
  # geom_point(aes(x = age, y = accepted_name)) +
  # geom_line(aes(x = age, y = accepted_name))
  scale_x_reverse(name = "Time (Ma)") +
  coord_geo(pos = list("bottom", "bottom"),
            dat = list("stages", "periods"),
            abbrv = list(TRUE, FALSE), expand = TRUE, size = "auto") +
  theme_classic()

And that’s that!

BREAKOUT SESSION 2

Practice Time!

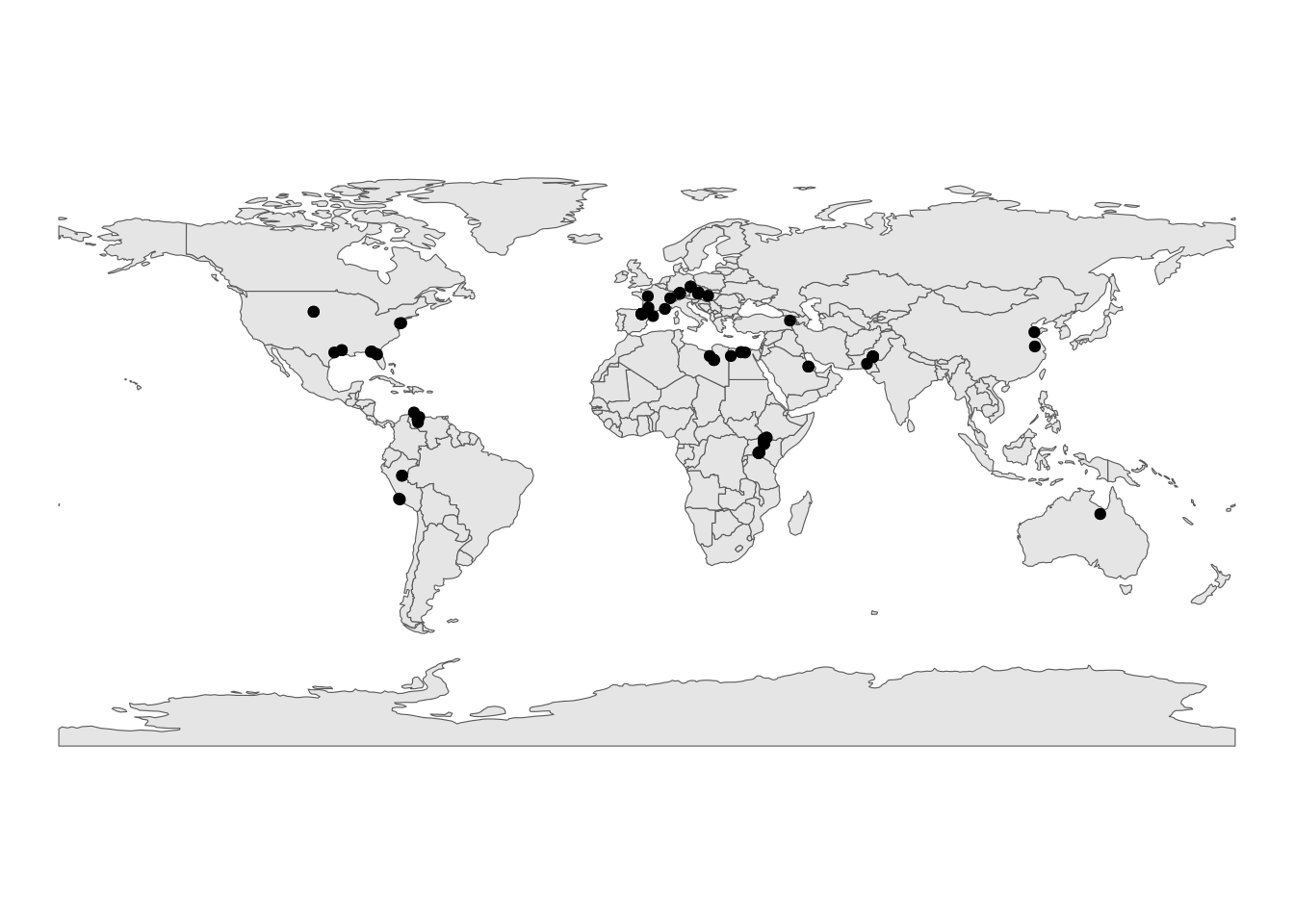

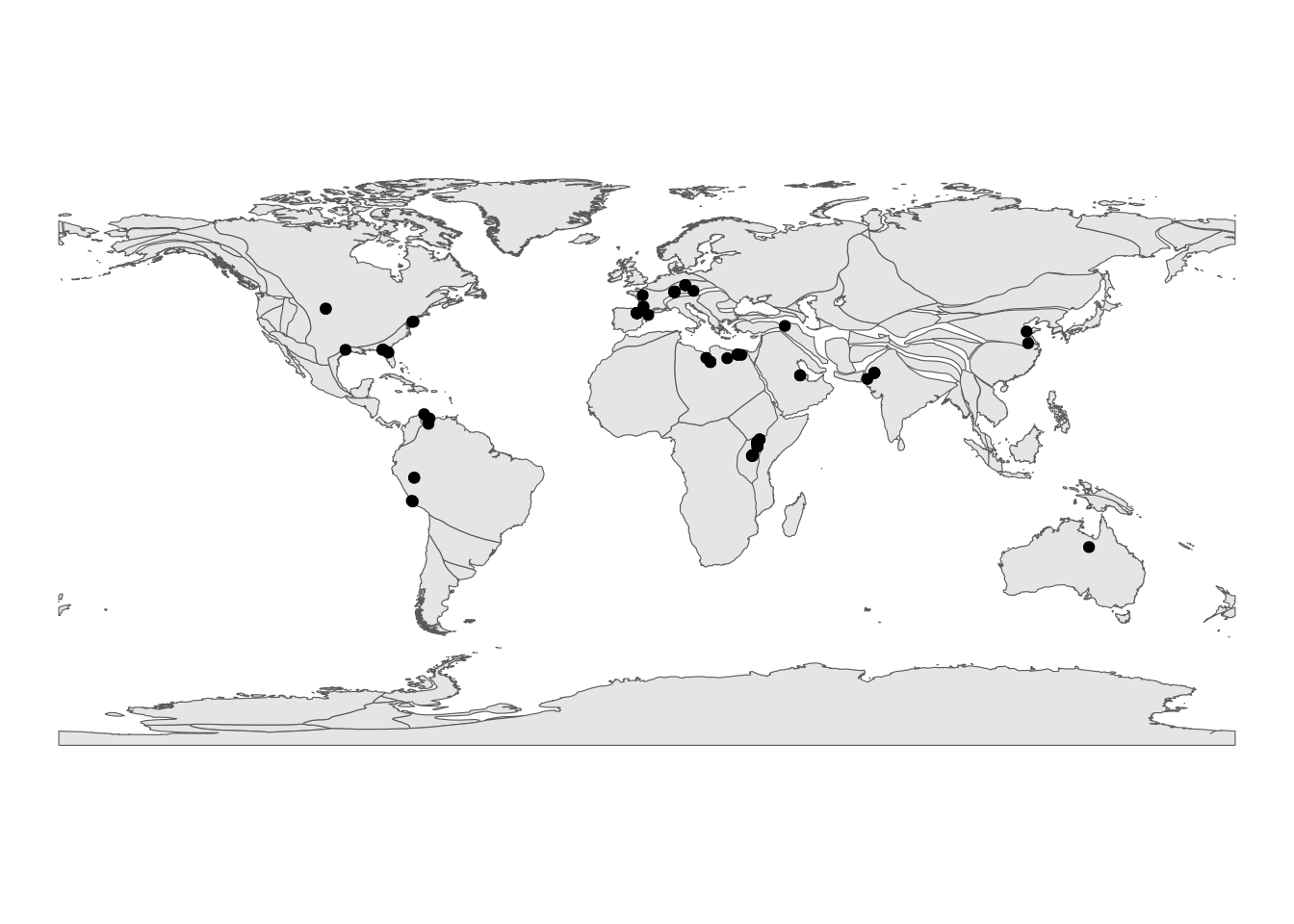

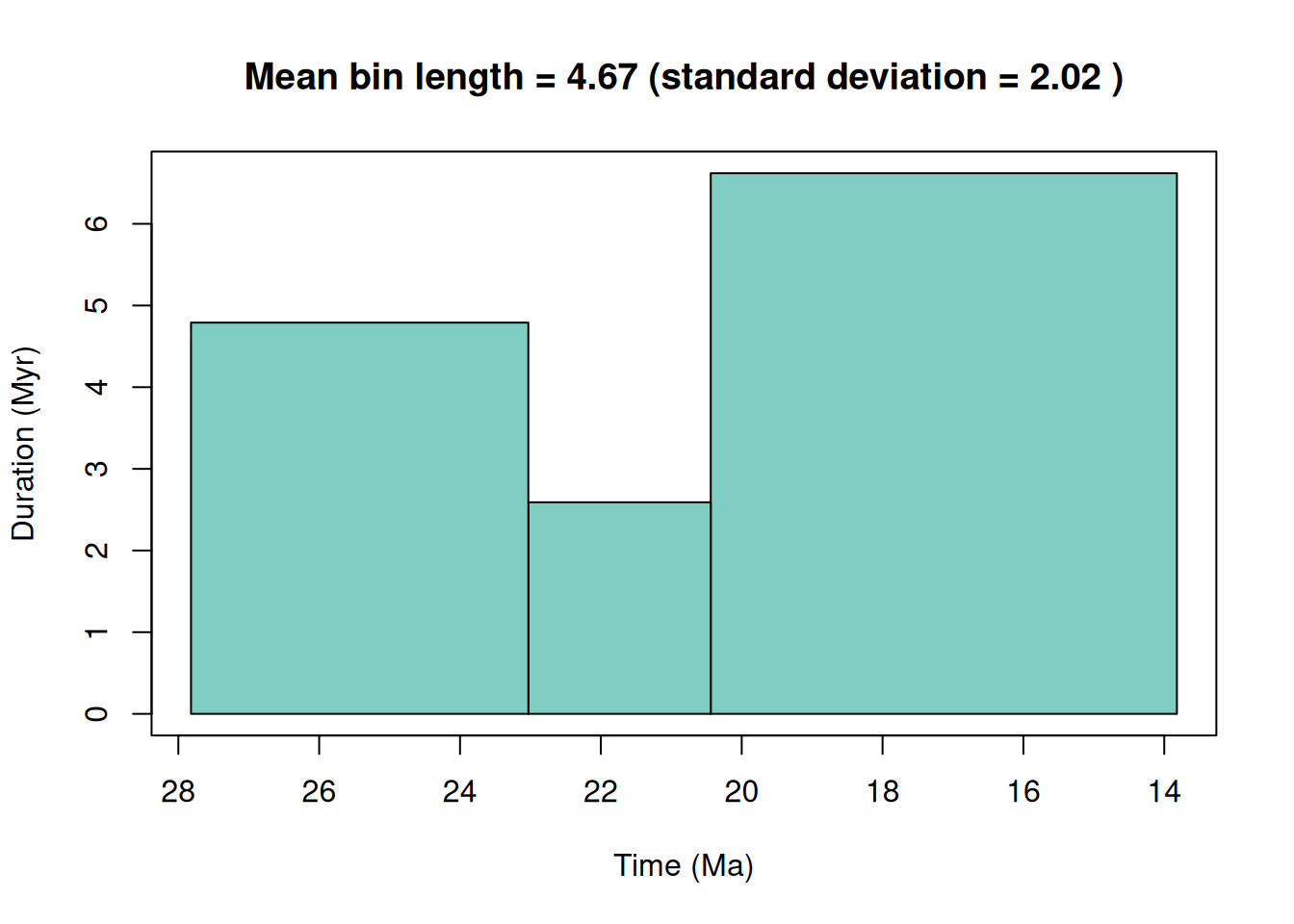

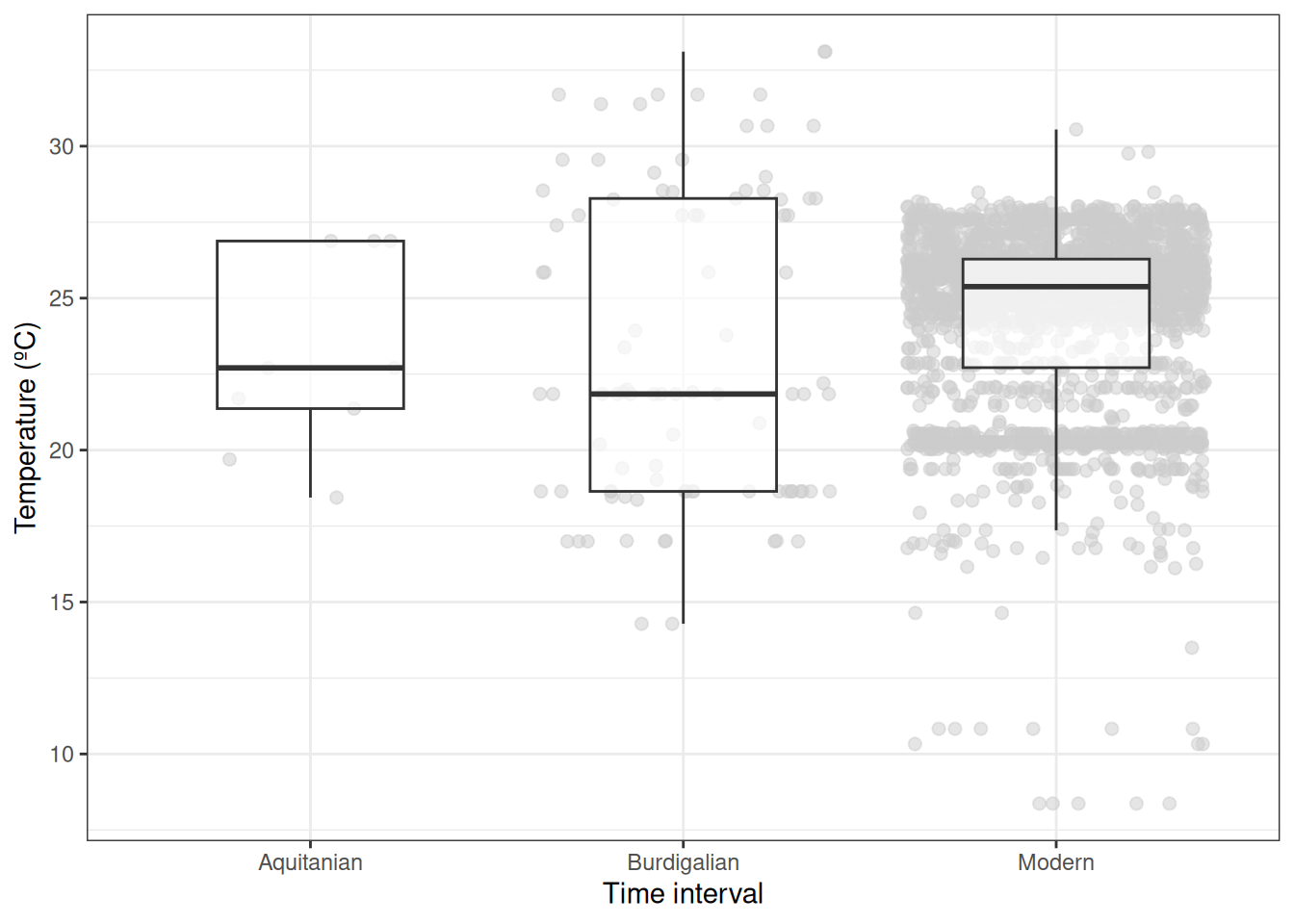

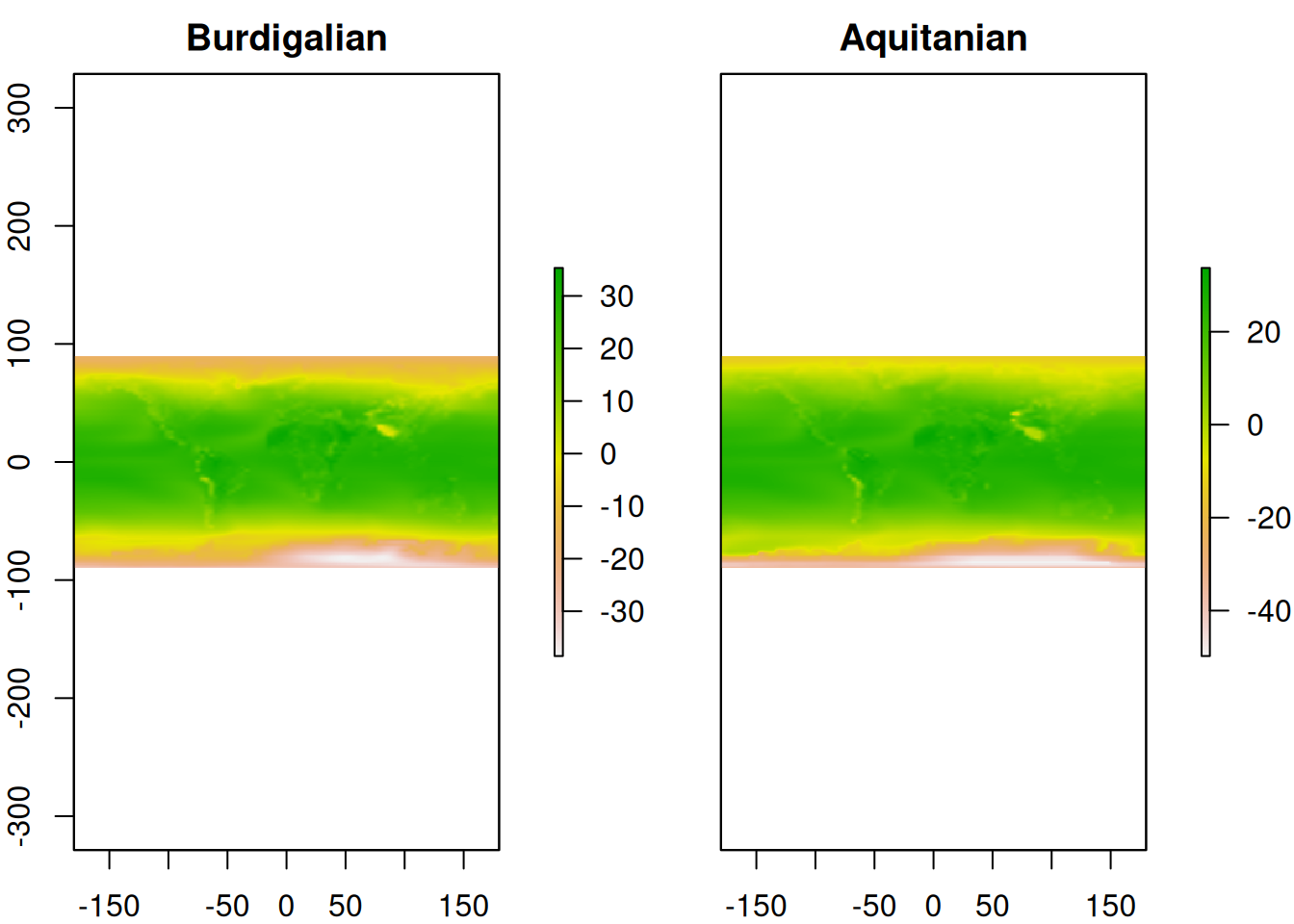

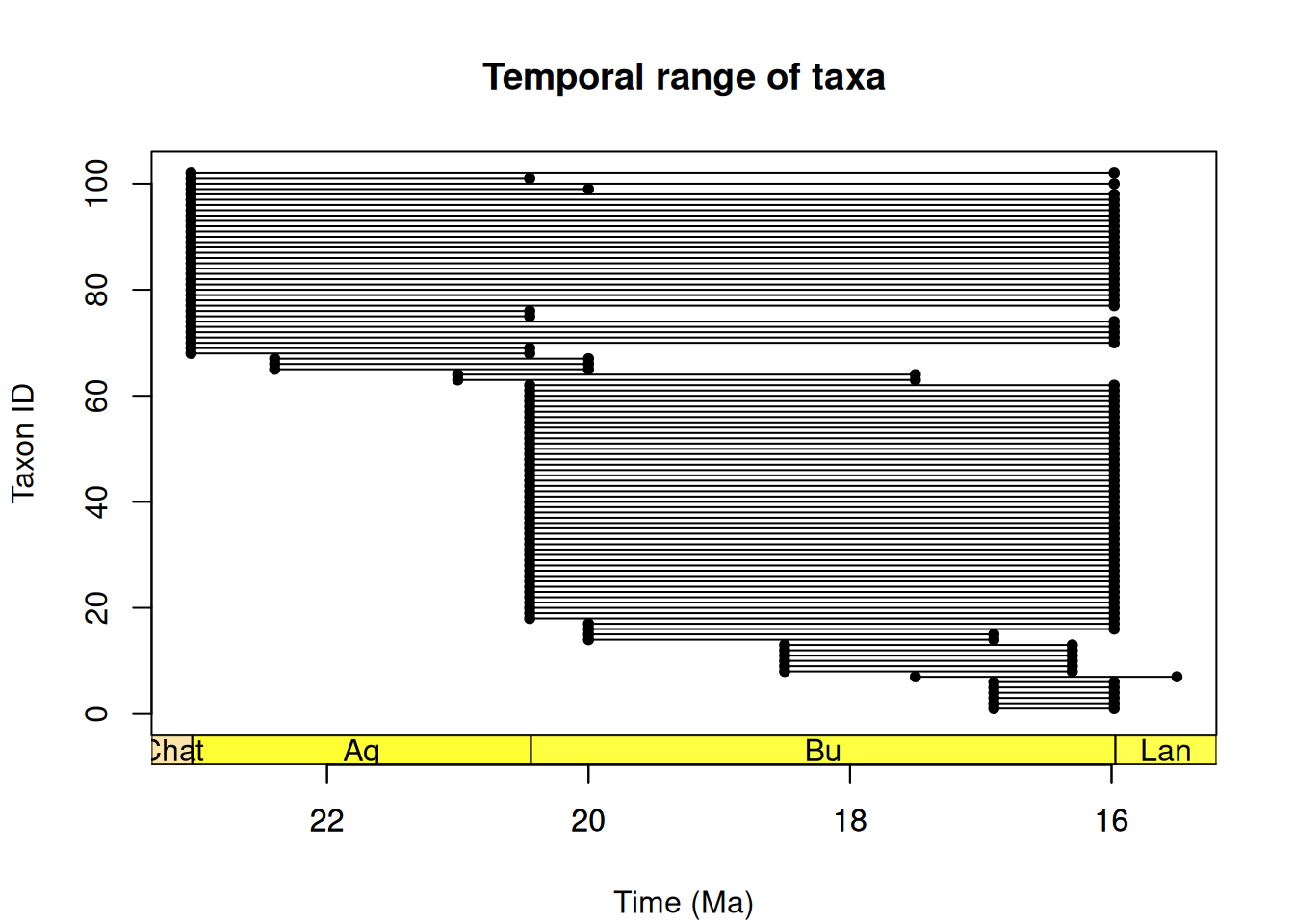

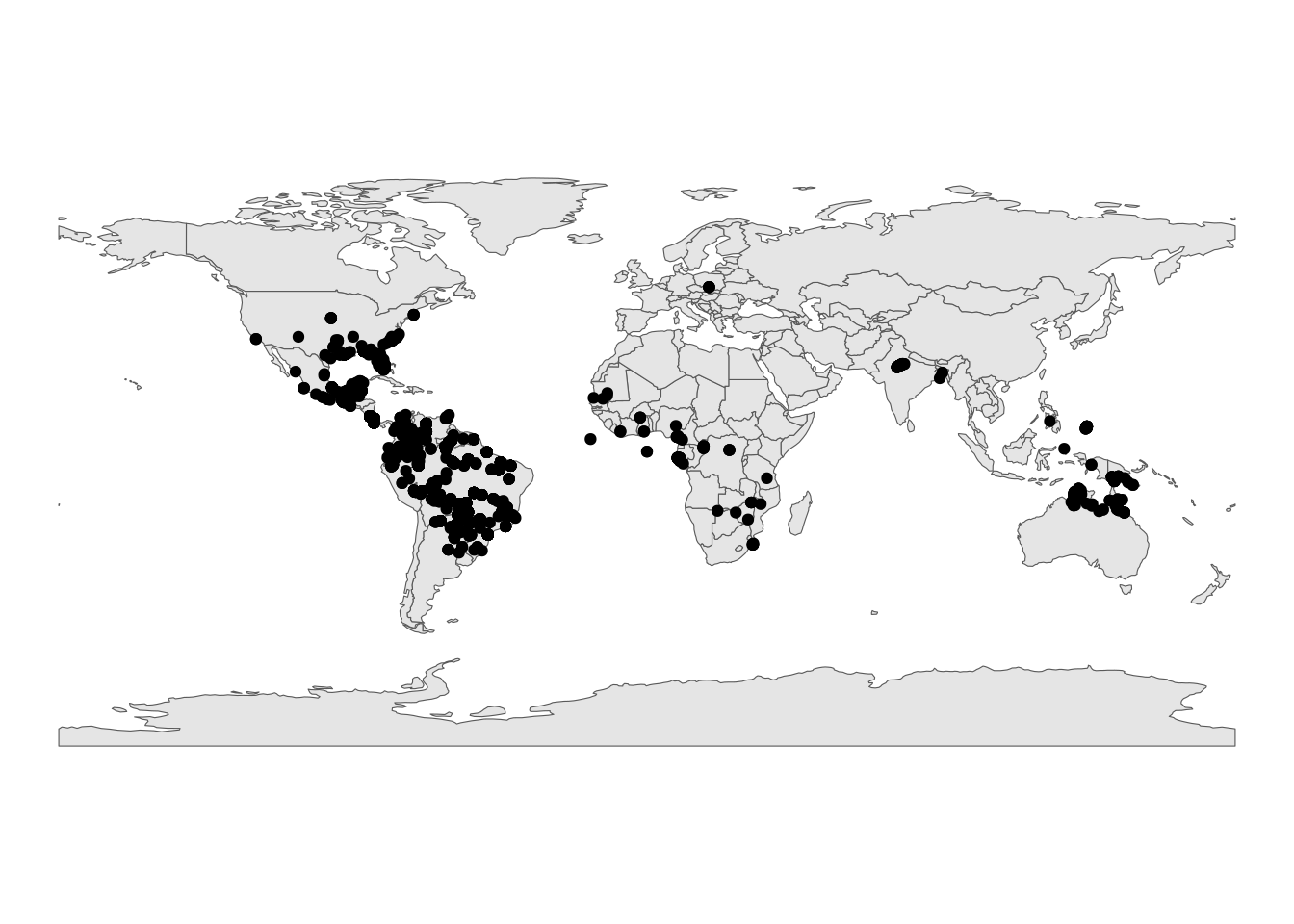

Let’s now put what you’ve learned to work to address the question posed toward the beginning of the workshop with the Cenozoic crocodile dataset: How do paleolatitudinal range and paleodiversity vary for Crocodylia across the Cenozoic?

How might you visualize the crocodile occurrences to look at patterns in range size and/or diversity across time intervals? You could start by sketching on paper what a figure might look like before you even start coding.
Try to adapt some of the code shared during the Data Processing modules to make this plot using the cleaned crocodile dataset. For some additional help, you can check out this Palaeoverse vignette.
Share your figures in small groups and discuss the different ways in which you chose to display the crocodile data. Moving forward, how might you revise your figure to more effectively visualize the data?
